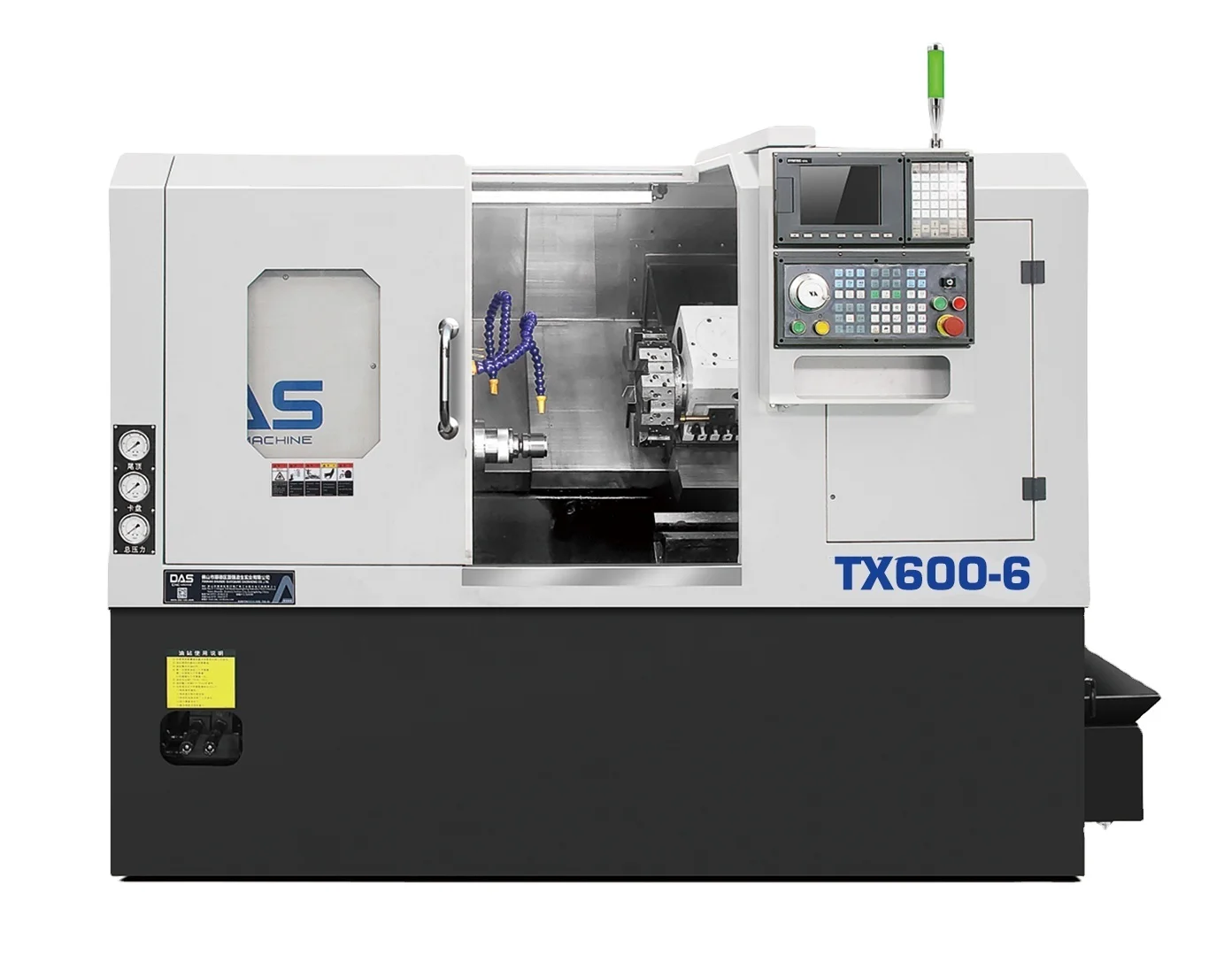

12 Bmt 45 Station Hydraulic Turret CNC Lathe with 12 Station of Knives and High-Precision Machine Torno
- Overview
- Recommended Products
Introducing, the DAS’s 12 Bmt 45 Station Hydraulic Turret CNC Lathe, a powerful and efficient machine that is perfect for all your turning needs. With 12 stations of knives, this high-precision machine torno allows for seamless and precise cutting, shaping, and finishing of a wide range of materials.
This CNC lathe is equipped with a hydraulic turret that ensures quick and accurate tool changes, saving you time and increasing productivity. The 12 stations of knives provide versatility and flexibility, allowing you to easily switch between different cutting tools to meet the specific requirements of each job.
The DAS’s 12 Bmt 45 Station Hydraulic Turret CNC Lathe is designed for precision and reliability. Its sturdy construction and high-quality components ensure durability and long-lasting performance, making it a valuable addition to any workshop or manufacturing facility.
This CNC lathe is easy to operate, thanks to its user-friendly interface and intuitive controls. Whether you are a seasoned professional or a novice operator, you will find this machine easy to use and highly efficient.
With its high-precision capabilities and advanced features, the DAS’s 12 Bmt 45 Station Hydraulic Turret CNC Lathe is ideal for a wide range of industries, including aerospace, automotive, marine, and more. Whether you are producing small custom parts or large-scale components, this machine can handle the job with ease.
The DAS’s 12 Bmt 45 Station Hydraulic Turret CNC Lathe is a versatile and high-performance machine that delivers precision, efficiency, and reliability. With its 12 stations of knives and high-precision capabilities, this CNC lathe is perfect for all your turning needs. Invest in the DAS’s 12 Bmt 45 Station Hydraulic Turret CNC Lathe today and take your manufacturing processes to the next level
Products Description
1. Machine tool control system uses Taiwan SYNTEC 6TA-T3S system. Other Brand OK!
2. Machine body is cast in one piece. The lathe bed tilts by 45°and the inclined placement of lathe carriage.
3. Taiwan's high-precision spindle, comprising Japan NSK precise bearings; three-jaw hydraulic chuck or other elastic clamp can be directly fitted on the main shaft flange.
4. The drive part of machine tool uses HIWIN/PMI high precision P3 class ball bearing screw and high speed linear slide rail.
2. Machine body is cast in one piece. The lathe bed tilts by 45°and the inclined placement of lathe carriage.
3. Taiwan's high-precision spindle, comprising Japan NSK precise bearings; three-jaw hydraulic chuck or other elastic clamp can be directly fitted on the main shaft flange.
4. The drive part of machine tool uses HIWIN/PMI high precision P3 class ball bearing screw and high speed linear slide rail.
1. Super rigidity. The body structure is one piece, with a solid base and a down feed centre, 45° saddle design for good vibration damping and reduced deformation, providing a very stable base for the head and turret, 45° sloping bed structure for easy loading and unloading of steel and smoother chip removal
2. Modern and popular control components. The DAS 46 series is available with the optional FAUNC 0iTF control package and Siemens 828D control package, 8.4' display, 10.4' display, additional interfaces, etc
3. Superb price/performance ratio. The 46C series of German origin has the best components, such as SAUTER turret and NSK bearings, which guarantee the high precision performance of the 46C series. At the same time we offer competitive prices, making the 46C series superbly cost effective
4. User-friendly design. Minimal space occupation, but mostly in line with the actual working area, full protective cover, humanized aesthetic design, stainless steel telescope cover, providing a safe and clean working environment and more durable
5. Rich choice. Electric turret, servo turret, power turret, upgraded spindle power, upgraded spindle torque, upgraded cylinder and chuck inner diameter, drawer type cooling tank, tool probe, oil mist remover, etc. for customers to choose from
6. High efficiency assembly line operation (optional). Thanks to the advanced truss drive, multiple machines can be combined together to complete a task, greatly reducing the drive time between each process and increasing efficiency
Name |
TX600-6 |
TX600-8 |
|
Max. Swing Diameter(mm) |
520 |
550 |
|
Tool installation |
12 stations turret |
0.2 |
|
Center height of the turret(mm) |
80 |
Random |
|
Max. number of tools(pcs) |
12 |
20×20 |
|
Spindle nose |
A2-5 |
A2-6 |
|
With chuck size |
6 Inch |
8 Inch |
|
Spindle speed (r/min) |
45-4500 |
45-4500 |
|
Spindle bore - mm |
φ56 |
φ62 |
|
Center height (mm) |
80 |
120 |
|
The maximum diameter of rotation (mm) |
450 |
450 |
|
Spindle motor power (KW) |
7.5 |
7.5 |
|
X/Z Axis stroke (mm) |
460/230 |
430/260 |
|
X/Z axis fast moving speed (m/min) |
26(Factory setting) |
26 - Factory setting |
|
X/Z axis Repetitive positioning accuracy (mm) |
± 0.005 |
± 0.005 |
|
System Min. resolution(mm) |
0.001 |
0.001 |
|
X servo-motor (KW) |
1.8 |
1.8 |
|
Z servo-motor (KW) |
1.8 |
1.8 |
|
Water tank motor power (KW) |
150W |
150W |
|
Cooling water tank capacity (L) |
60 |
60 |
|
Power (KW) |
15 |
15 |
|
Weight (KG) |
3500 |
3800 |
|
Size (L*W*H mm) |
2800*1550*1800 |
2800*1550*1800 |
|
Bearing
The main shaft bearing and lead screw bearing adopt the structure of japan NSK and Sweden SKF, the first three and the second after P4, per stretching technology is adopted to ensure

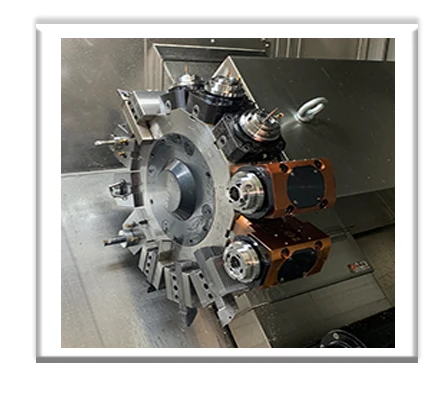

Vertical four position tool rest
The turrets of Taiwan Liuxin, Xinlong and india Prageti have high positioning accuracy, low working noise and short tool change time
ULTRA PRECISION THREE JAW CHUCK
High rigid cast iron casting, the workpiece is clamped firmly, and the service life is long. The hydraulic chuck can realize the automatic clamping of workpiece through the control panel, greatly saving the time required for manual clamping of workpiece and improving the processing efficiency
Numerical control system
Classic:knd1000t
Reinforcement:siemens/fanuc/mitsubishi/taiwan new generation
Linear motion guide
Taiwan yintai/hps grade p adopt taiwan track, high rigidity, high precision, long life, strong dustproof
Ball screw
Taiwan yintai/h ps grade C screw rod Taiwan screw, as the core part of machine tool, is provided for general lead and large diameter ball screw better quality of work
Lubrication system
Electrinic oil pump:centralized automatic forced lubrication. Each ball screw pair and each sliding guide surface are lubricated by quantitative pressure relief centralized by thin oil unit lubrication
