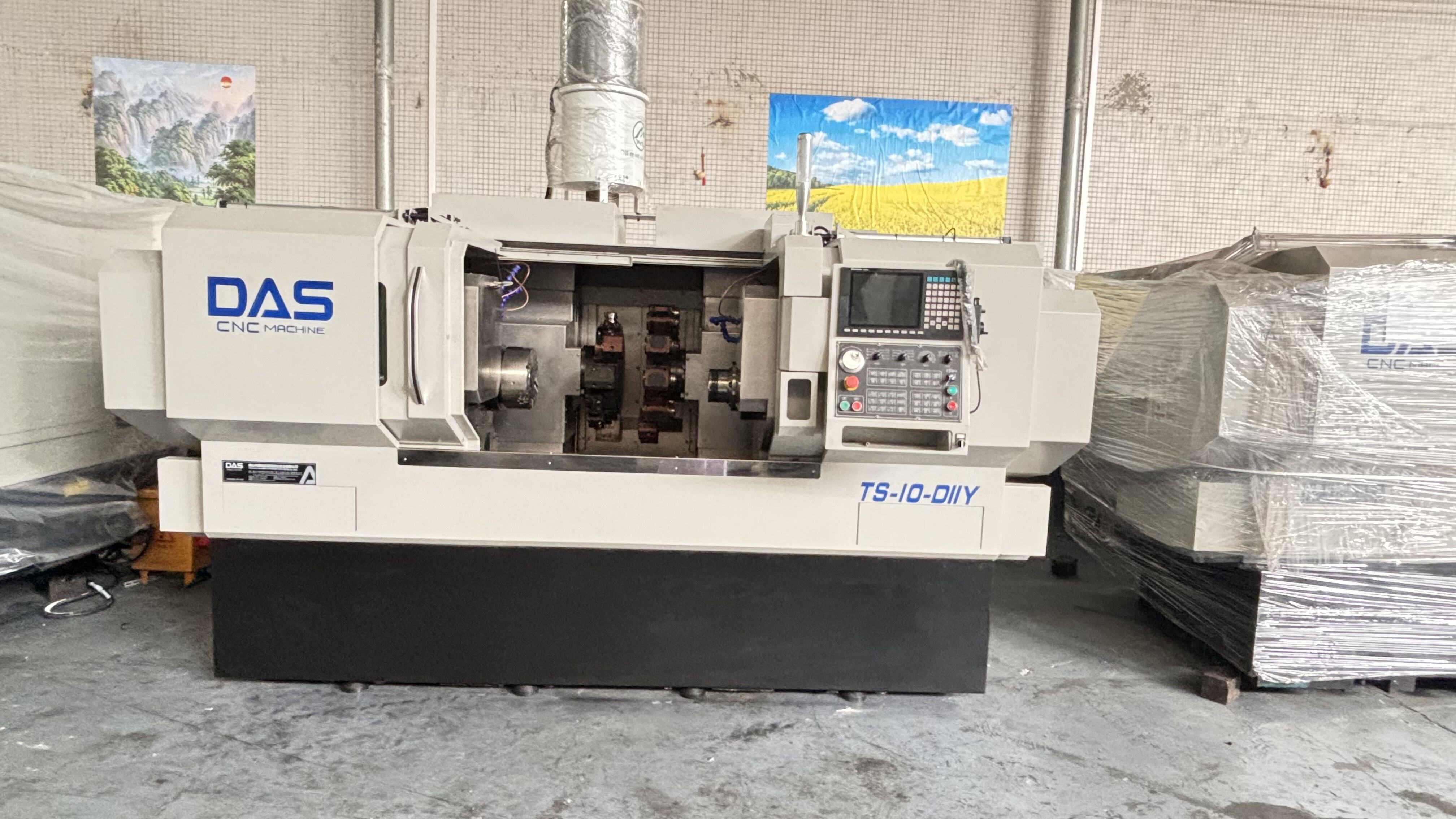

Das High Precision 10 Inch Chuck CNC Turning Center Multifunctional Horizontal 220v Lathes Machine with Y Axis Power Turret
- Overview
- Recommended Products
Introducing, the high precision Das 10 Inch Chuck CNC Turning Center, a multifunctional horizontal lathe machine that is sure to revolutionize the way you work. With its state-of-the-art technology and Y Axis Power Turret, this machine is designed to provide unparalleled precision and efficiency for all your turning needs.
The Das’s CNC Turning Center is equipped with a 10-inch chuck that allows for the processing of a wide range of materials with ease. Whether you are working with metal, plastic, or wood, this machine can handle it all. The horizontal design of the lathe ensures stability and accuracy in every job, while the 220v power supply guarantees consistent performance.

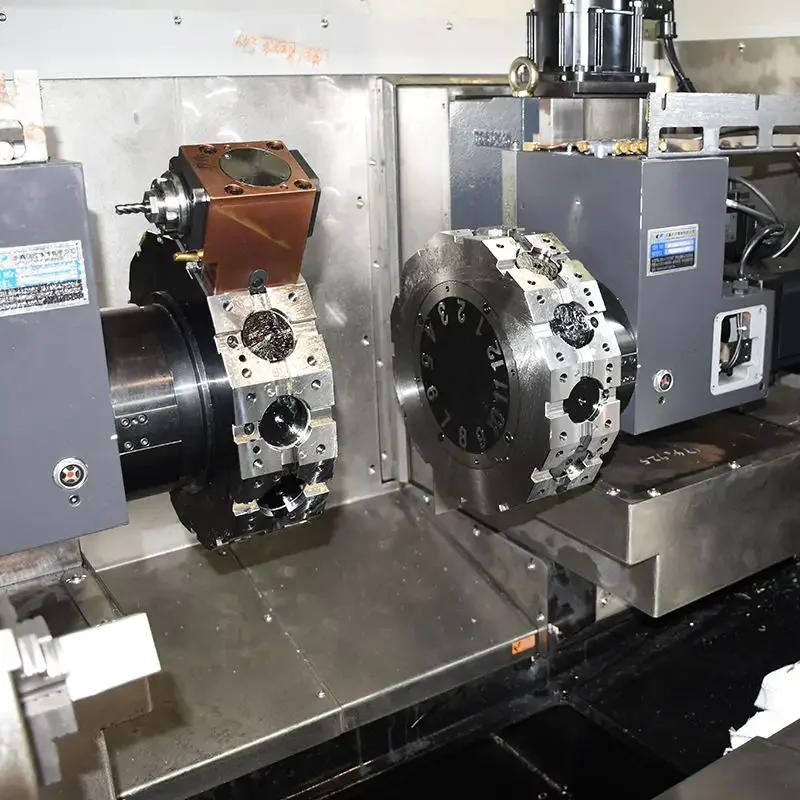

One of the standout features of the Das’s CNC Turning Center is its Y Axis Power Turret, which allows for quick and precise tool changes. This means you can switch between tools with ease, saving you time and increasing productivity. The power turret also ensures that your tools are always in the optimal position for maximum efficiency.
With its high precision capabilities, the Das’s CNC Turning Center is perfect for a variety of industries, including manufacturing, automotive, and aerospace. Whether you are creating intricate parts or large components, this machine can handle it all with ease. The CNC control system ensures accurate and repeatable results every time, so you can trust in the quality of your work.
Not only is the Das’s CNC Turning Center a powerful machine, but it is also built to last. Made with durable materials and a robust construction, this lathe machine is designed for long-term use. The reliable performance and low maintenance requirements make it a cost-effective investment for any business.
The Das’s High Precision 10 Inch Chuck CNC Turning Center is a top-of-the-line machine that offers precision, efficiency, and versatility for all your turning needs. With its Y Axis Power Turret and 220v power supply, this lathe machine is sure to exceed your expectations. Trust in the Das brand for quality and reliability in every job you do
Item |
Unit |
TS-10-DIIY |
Max Swing Diameter |
mm |
φ550 |
Max Process Diameter |
mm |
φ300 |
Max Process Length |
mm |
600 |
Spindle/Sub-spindle Nose |
mm |
A2-8(10 Inch)/A2-8 - 10 Inch |
Spindle/Sub-spindle Speed |
r/min |
0-1800 |
Spindle/Sub-spindle Bore |
mm |
φ85/φ85 |
Spindle/Sub-spindle Motor Power |
kw |
15 |
Tool Installation |
- |
BMT65 |
Max Number Of Tools |
pcs |
12 |
Tool Specifications |
mm |
ER40, φ40, 25*25 |
X1/Z1 Axis Travel |
mm |
500/450 |
X2/Z2 Axis Travel |
mm |
500/580 |
Y1/Y2 Axis Travel |
mm |
±100 |
X1/Z1/Y1 Axis Servo Motor Power |
kw |
3.9/3.9/5.9 |
X2/Z2/Y2 Axis Servo Motor Power |
kw |
3.9/3.9/5.9 |
X1/X2; Z1/Z2; Y1/Y2 Axis Fast Moving Speed |
m/min |
20/20/10 |
Power Head Servo Motor |
kw |
5.5/5.5 |
Turret Servo Motor |
kw |
0.75/0.75 |
Machine Power |
kw |
82 |
Net Weight |
kg |
7800 |
Machine Dimensions - L*W*H |
mm |
3800*2400*2000 |
Packing Dimensions - L*W*H |
mm |
4000*2600*2100 |
