DAS New Arrival Virtual Y Axis Power Turret CNC Lathe Turning and Milling Machine With Tailstock High Precision Tour CNC
- Overview
- Recommended Products

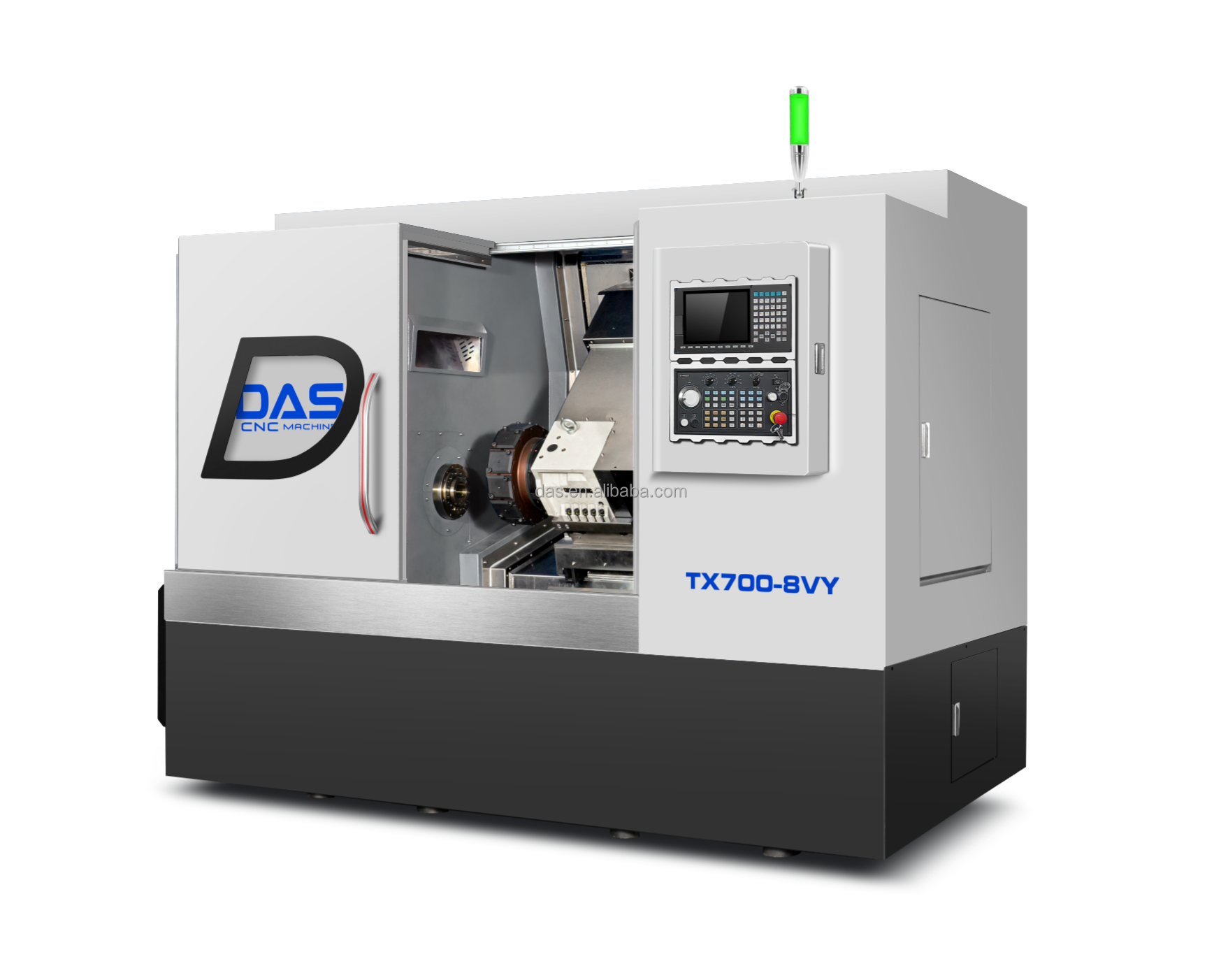

Introducing, the latest addition to the DAS family – the New Arrival Virtual Y Axis Power Turret CNC Lathe Turning and Milling Machine With Tailstock High Precision Tour CNC. This cutting-edge machine combines power, precision, and innovation to take your machining projects to the next level.

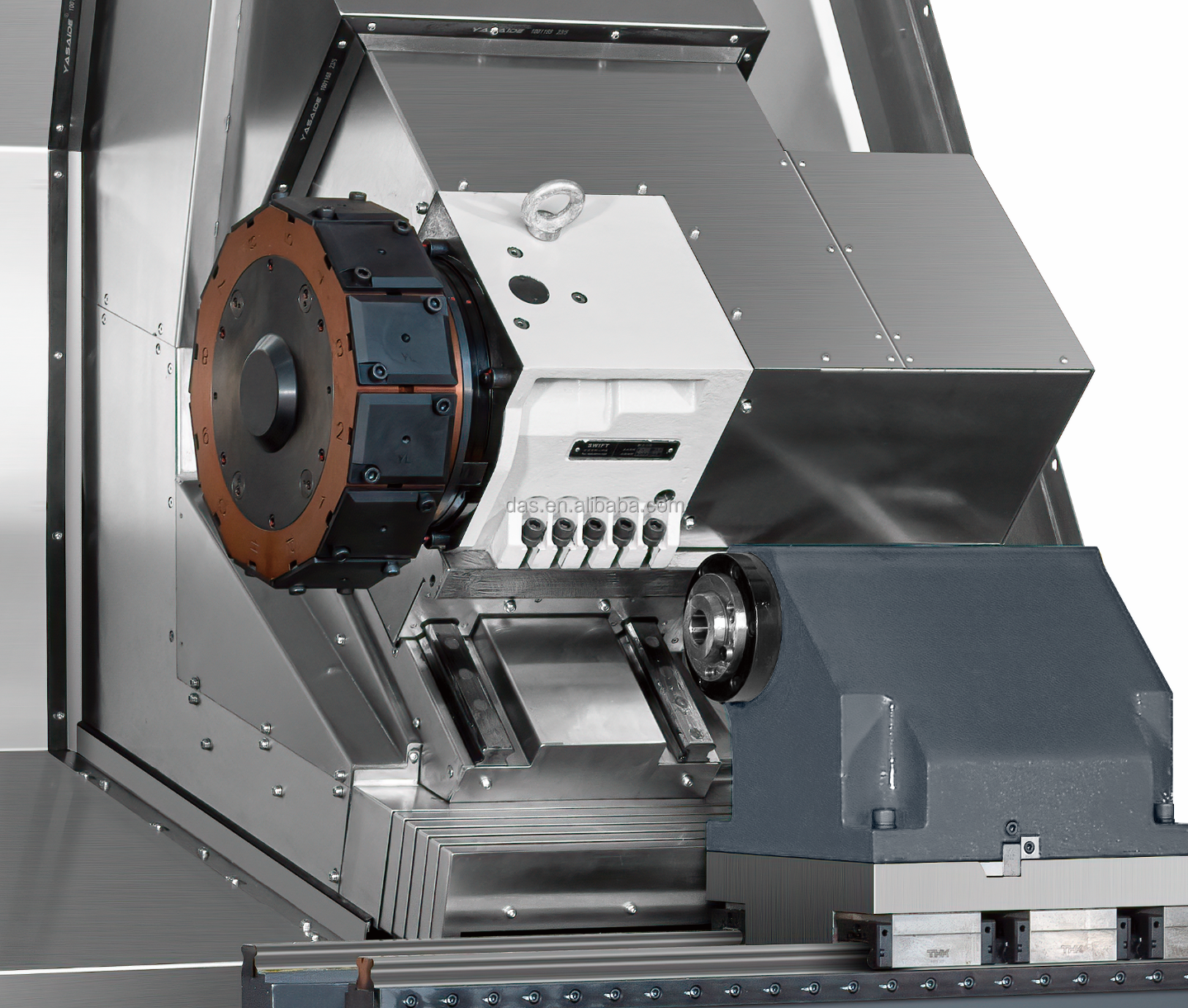

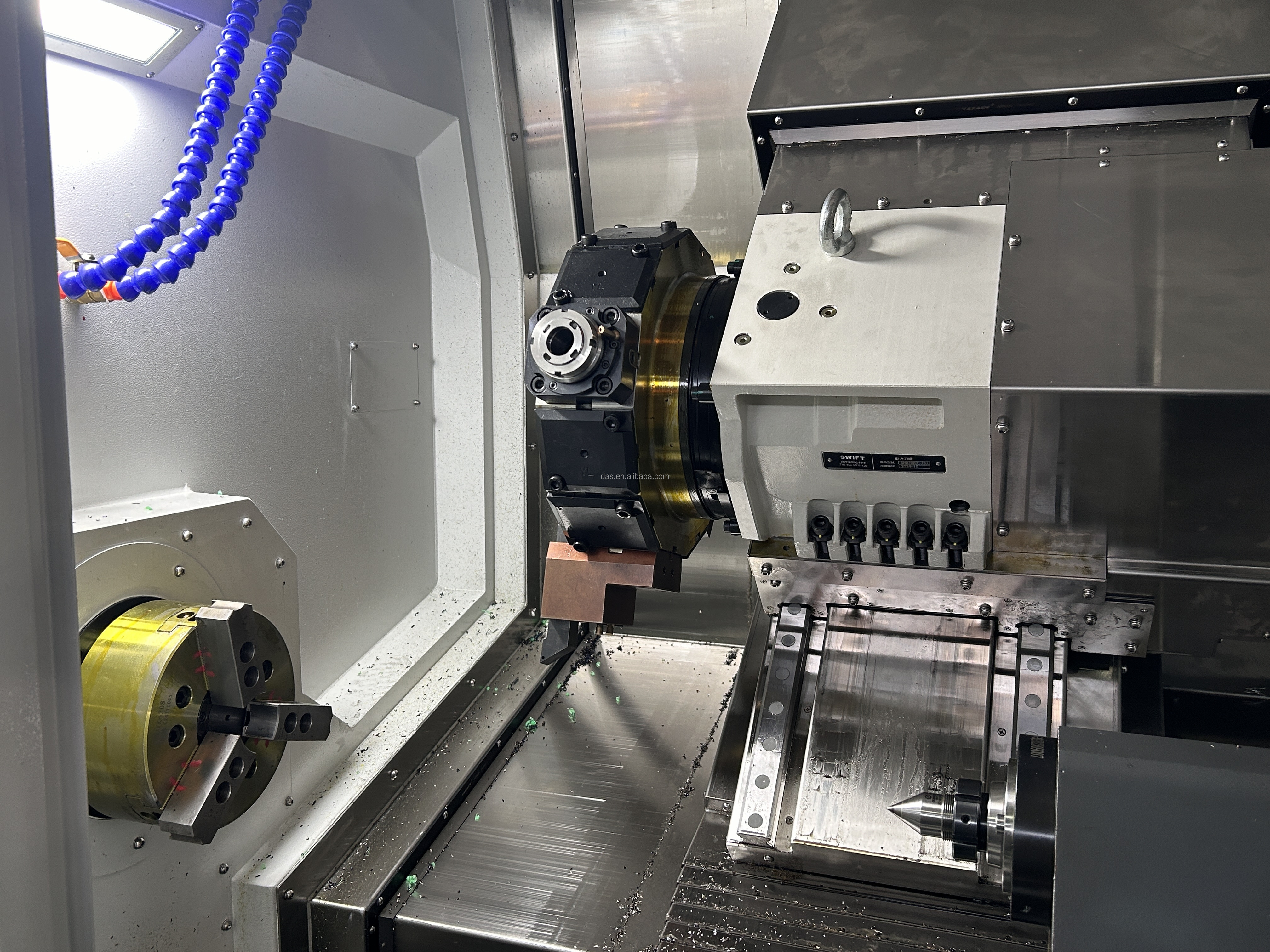

Crafted by the renowned brand DAS, known for their commitment to quality and performance, this CNC lathe is a game-changer in the world of turning and milling. With a virtual Y axis power turret, this machine allows for quick and precise tool changes, making it ideal for a wide range of applications. Whether you're working on complex parts or simple components, this CNC lathe can handle it all with ease.

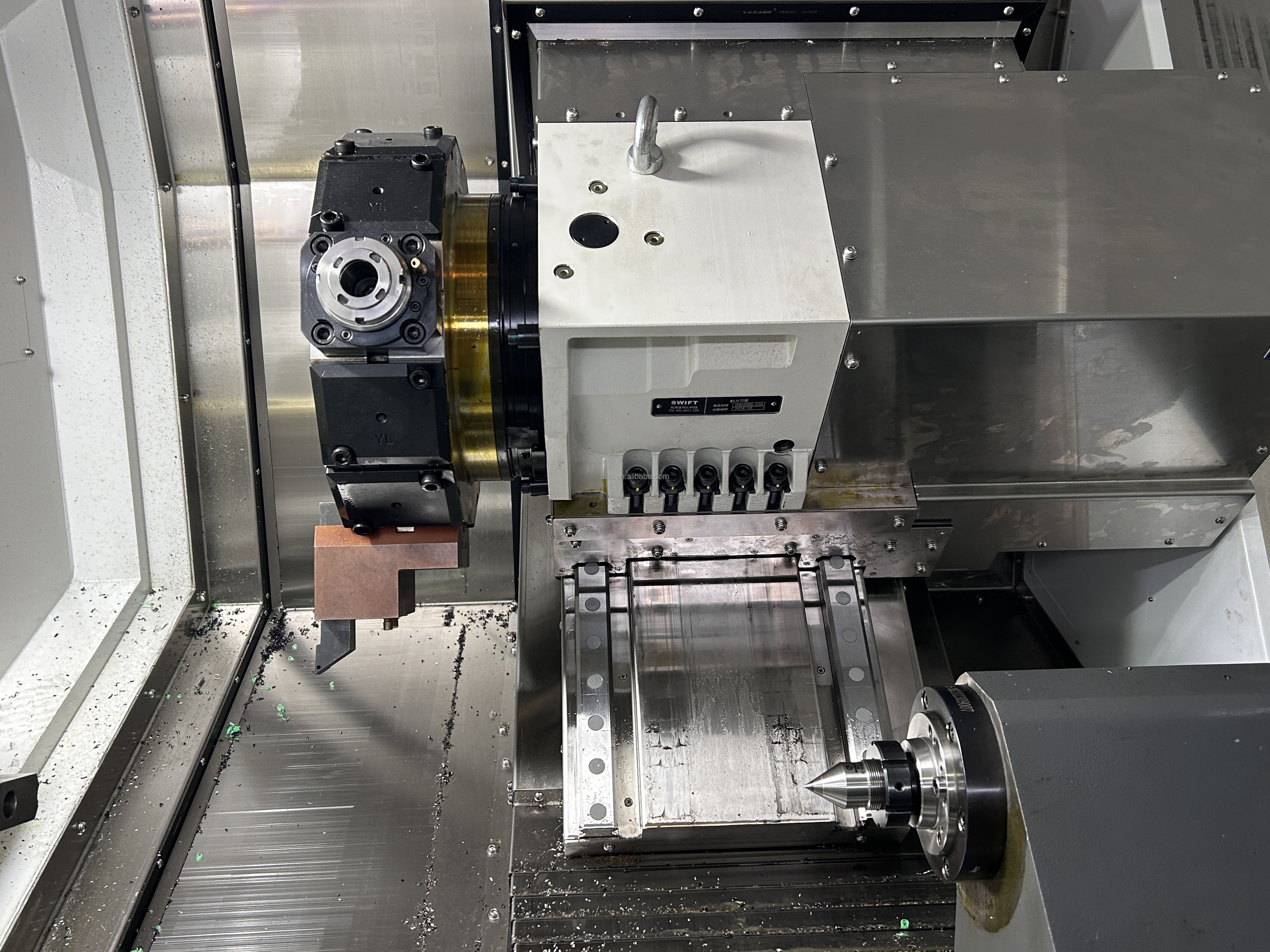

The high precision tour CNC ensures that every cut is made with accuracy and consistency, resulting in flawless finished products. The tailstock feature adds even more versatility to this already impressive machine, allowing for additional support and stability during precision machining operations.
With its sleek design and user-friendly interface, the DAS’s New Arrival CNC Lathe is easy to operate for both beginners and experienced machinists alike. The intuitive controls and advanced technology make it a breeze to program and execute even the most intricate machining tasks.
Whether you're a hobbyist looking to upgrade your home workshop or a professional machinist seeking a reliable and efficient CNC lathe for your business, the DAS’s New Arrival Virtual Y Axis Power Turret CNC Lathe is the perfect choice. It's built to last, with durable construction and high-quality components that ensure years of reliable performance.
Don't settle for anything less than the best when it comes to your machining needs. Invest in the DAS’s New Arrival Virtual Y Axis Power Turret CNC Lathe Turning and Milling Machine With Tailstock High Precision Tour CNC and experience the difference that superior quality and precision can make in your work. Upgrade your machining capabilities today and take your projects to new heights with this exceptional CNC lathe from DAS
Item |
Unit |
TX700-8VY |
Max Swing Diameter |
mm |
Φ600 |
Max Process Diameter |
mm |
Φ340 |
Max Process Length |
mm |
550 |
Max Machining Diameter on Tool Holder |
mm |
Φ240 |
Spindle Speed |
r/min |
0-4000 - Factory Setting |
Machine Power |
kw |
28 |
Tool Installation |
- |
BMT55-12 Turret |
X Axis Travel |
mm |
260 |
Y Axis Travel |
mm |
±58 |
Z Axis Travel |
mm |
620 |
Type of Tailstock Center |
- |
MT4 |
Power Head Servo Motor |
kw |
3.1 - 4000 r/min |
Turret Servo Motor |
kw |
0.75 - 3000r/min |
Hydraulic Station Motor Power |
kw |
1.5 |
Net Weight |
kg |
5300 |
Machine Dimensions - L*W*H |
mm |
2900*1950*2100 |
