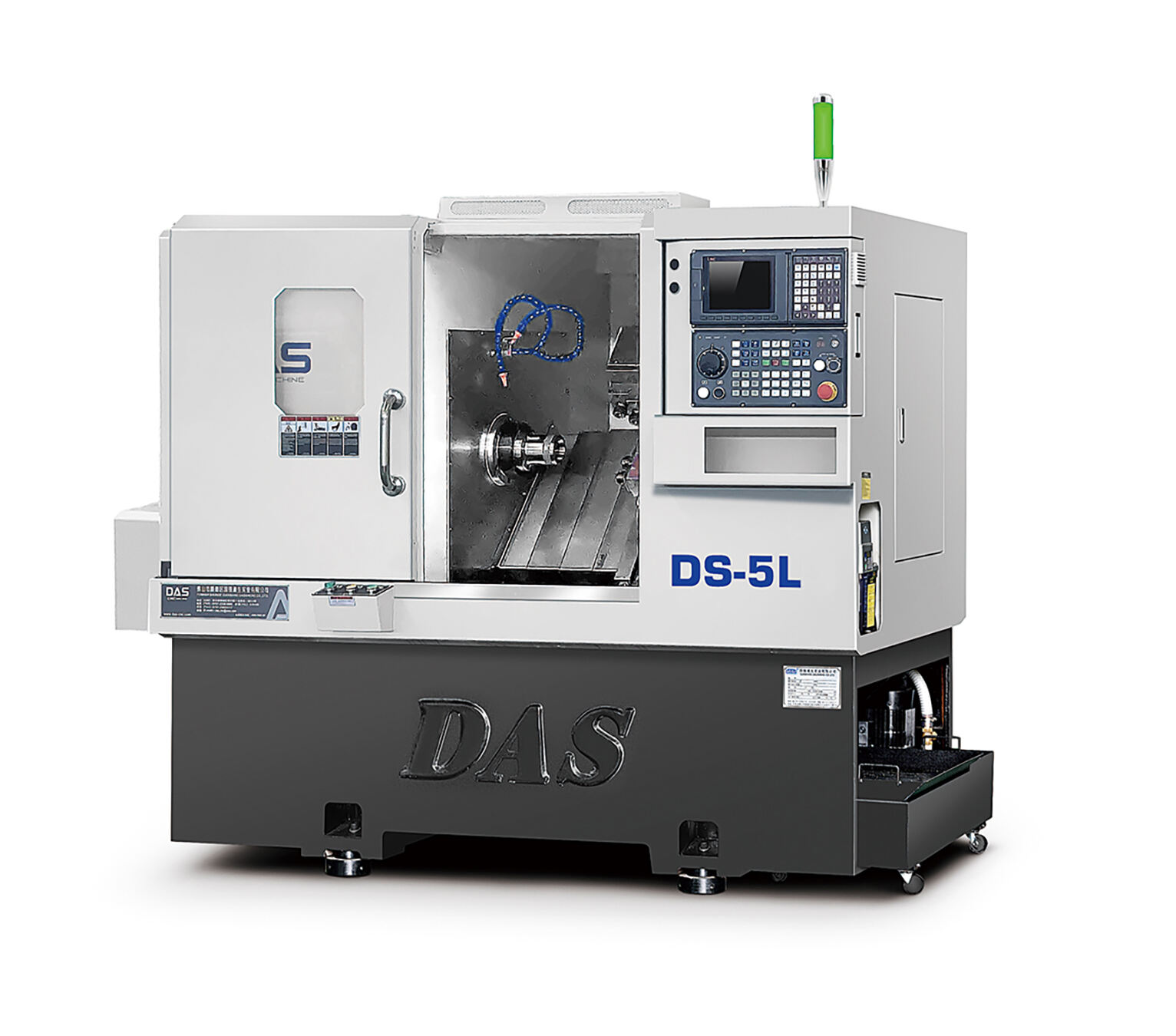

DS-5L Professional High Precision Lathes Converse Chuck Taylor 2 Torno CNC Fanuc Turning Machines Prices
- Overview
- Recommended Products
Introducing, the DS-5L Professional High Precision Lathes by DAS, the ultimate solution for all your machining needs. This top-of-the-line lathe is designed to provide unparalleled precision and accuracy, making it the perfect choice for both professional machinists and hobbyists alike.
One of the standout features of the DS-5L is its precision engineering, ensuring that every cut is made with absolute accuracy. This level of precision is essential for creating high-quality parts and products, and the DS-5L delivers every time.
Another key feature of the DS-5L is its high-quality construction. Made from durable materials, this lathe is built to last, even with heavy use. Its robust design ensures that it can handle even the toughest machining jobs, making it a reliable tool for any workshop.
In addition to its precision and durability, the DS-5L also offers a range of advanced features to enhance your machining experience. From variable speed control to automatic tool change capabilities, this lathe has everything you need to take your machining to the next level.
But the benefits of the DS-5L don't stop there. This lathe also offers exceptional value for money, making it an affordable option for businesses and individuals alike. With its competitive pricing, the DS-5L offers professional-grade performance at a fraction of the cost of other high-precision lathes.
When it comes to machining, precision is key. That's why the DS-5L Professional High Precision Lathes by DAS are the perfect choice for anyone looking to take their machining to the next level. With its unbeatable accuracy, durability, and advanced features, this lathe is sure to impress even the most demanding machinists.
So, why wait? Upgrade your workshop with the DS-5L Professional High Precision Lathes by DAS today and experience the difference that precision machining can make. Whether you're a seasoned professional or just starting out, this lathe is sure to exceed your expectations
Products Description
The machine is suitable to process all kinds of small and middle-sized shaft and plate work piece, and could also turn various threads, circle arc, circular cone, inside and outside surface of revolved body. This machine is widely used in sanitary, valve, electrical appliance, instrument, automobile, motorcycle, bearings and so on
1. Super rigidity. The body structure is one piece, with a solid base and a down feed centre, 45° saddle design for good vibration damping and reduced deformation, providing a very stable base for the head and turret, 45° sloping bed structure for easy loading and unloading of steel and smoother chip removal
2. Modern and popular control componentsThe DAS 46 series is available with the optional FAUNC 0iTF control package and Siemens 828D control package, 8.4' display, 10.4' display, additional interfaces, etc
3. Superb price/performance ratioThe 46C series of German origin has the best components, such as SAUTER turret and NSK bearings, which guarantee the high precision performance of the 46C series. At the same time we offer competitive prices, making the 46C series superbly cost effective
4. User-friendly designMinimal space occupation, but mostly in line with the actual working area, full protective cover, humanized aesthetic design, stainless steel telescope cover, providing a safe and clean working environment and more durable
5. Rich choiceElectric turret, servo turret, power turret, upgraded spindle power, upgraded spindle torque, upgraded cylinder and chuck inner diameter, drawer type cooling tank, tool probe, oil mist remover, etc. for customers to choose from
6. High efficiency assembly line operation (optional). Thanks to the advanced truss drive, multiple machines can be combined together to complete a task, greatly reducing the drive time between each process and increasing efficiency
Name |
DS-5L |
DS-6L |
The style of installation tool |
Gang type |
Gang type |
Square tool holder (mm) |
20×20 |
20×20 |

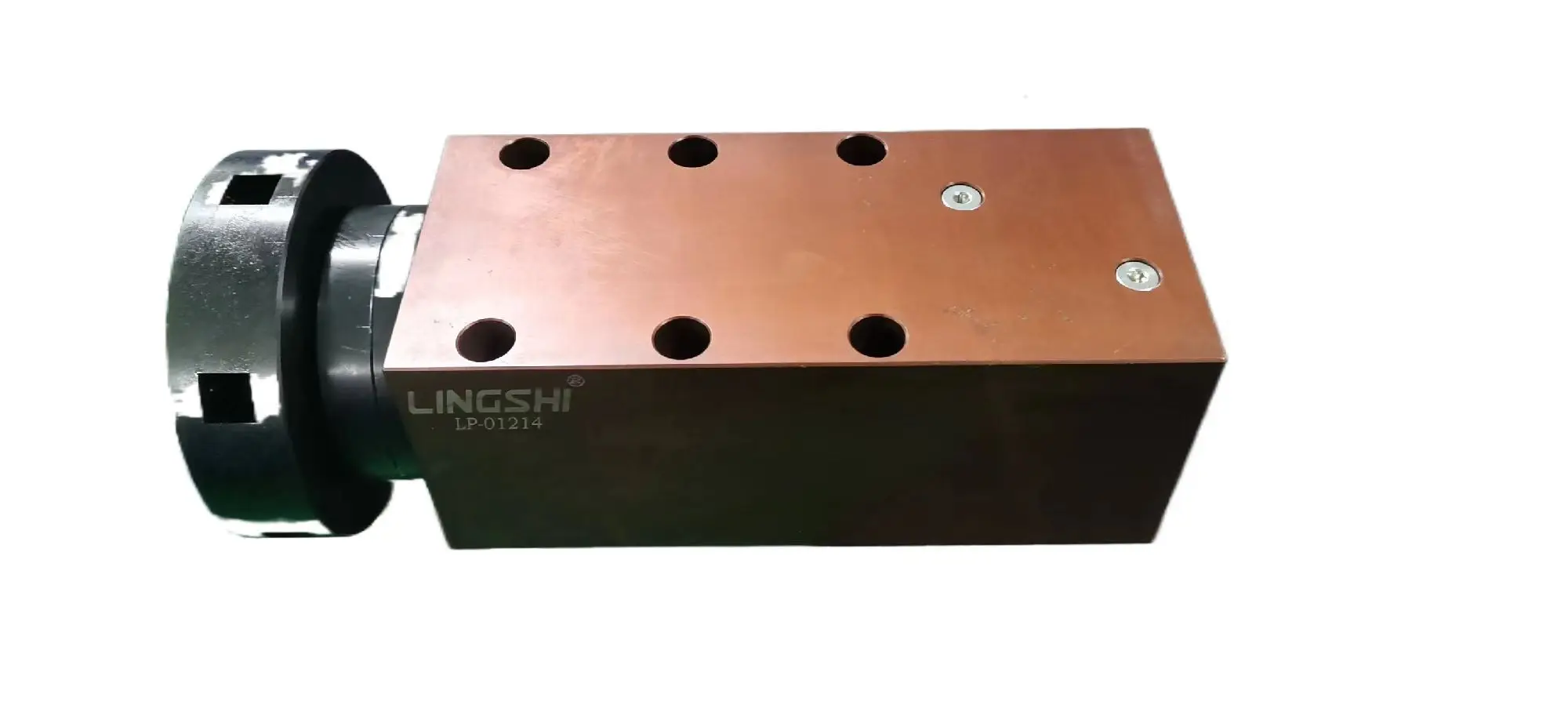

Round hole tool holder - mm |
φ20 |
φ20 |
Chuck size |
5 Inch |
6 Inch |
Spindle speed (r/min) |
0-4500 |
0-4500 |
Spindle bore - mm |
φ46 |
φ56 |
Spindle motor power(kw) |
5.5 |
7.5 |
Center height (mm) |
56 |
56 |
Max swing diameter - mm |
φ380 |
φ380 |
Max. turning diameter - mm |
φ380 |
φ380 |
Max. turning length(mm) |
250 |
250 |
X/Z Axis travel (mm) |
1030/300 |
1040/300 |
X/Z axis fast moving speed (m/min) |
26(Factory setting) |
26 - Factory setting |
X/Z axis Repetitive positioning accuracy (mm) |
±0.005 |
±0.005 |
X/Z axis motor power(kw) |
1.3/1.3 |
1.3/1.3 |
Taper (mm) |
≤0.003/100mm |
≤0.003/100mm |
Hydraulic station (KW) |
0.75 |
0.75 |
Water tank motor power (KW) |
150W |
150W |
Cooling water tank capacity (L) |
60 |
60 |
Power (KW) |
11 |
13 |
Weight (KG) |
2900 |
3000 |
Size (L*W*H mm) |
2400*1500*2000 |
2400*1500*2000 |
Bearing
The main shaft bearing and lead screw bearing adopt the structure of japan NSK and Sweden SKF, the first three and the second after P4, per stretching technology is adopted to ensure
Vertical four position tool rest
The turrets of Taiwan Liuxin, Xinlong and india Prageti have high positioning accuracy, low working noise and short tool change time

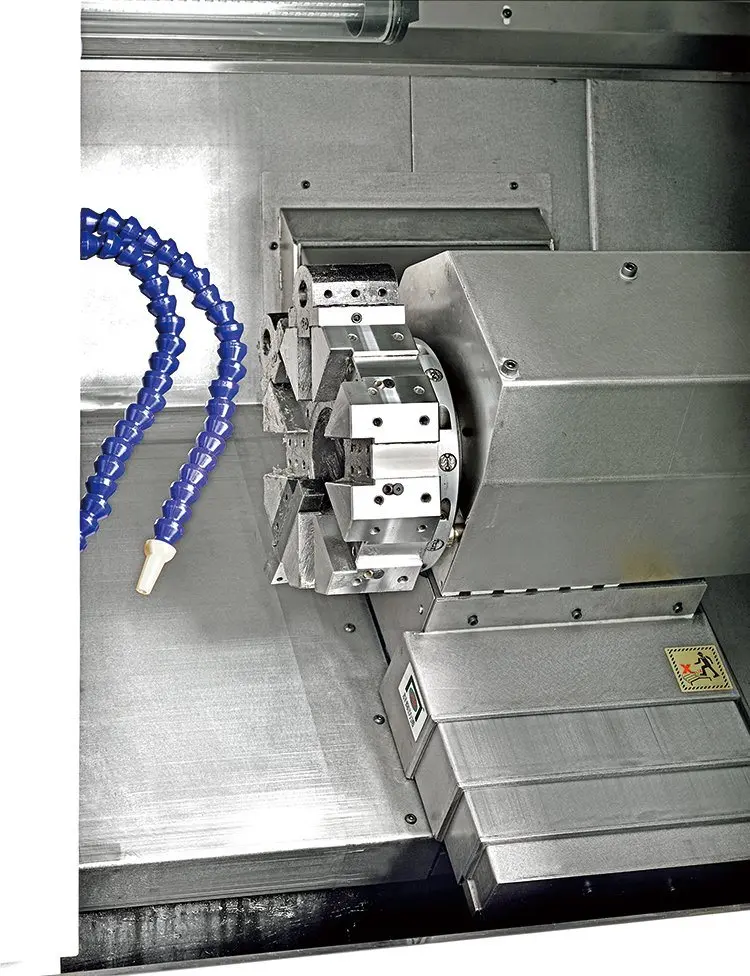

ULTRA PRECISION THREE JAW CHUCK
High rigid cast iron casting, the workpiece is clamped firmly, and the service life is long. The hydraulic chuck can realize the automatic clamping of workpiece through the control panel, greatly saving the time required for manual clamping of workpiece and improving the processing efficiency

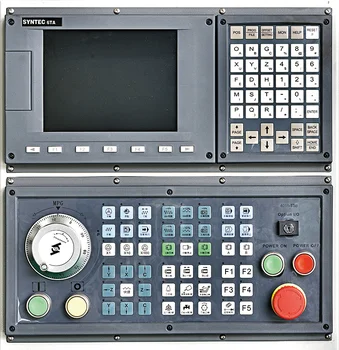

Numerical control system
Classic:knd1000t
Reinforcement:siemens/fanuc/mitsubishi/taiwan new generation
Linear motion guide
Taiwan yintai/hps grade p adopt taiwan track, high rigidity, high precision, long life, strong dustproof
Ball screw
Taiwan yintai/h ps grade C screw rod Taiwan screw, as the core part of machine tool, is provided for general lead and large diameter ball screw better quality of work

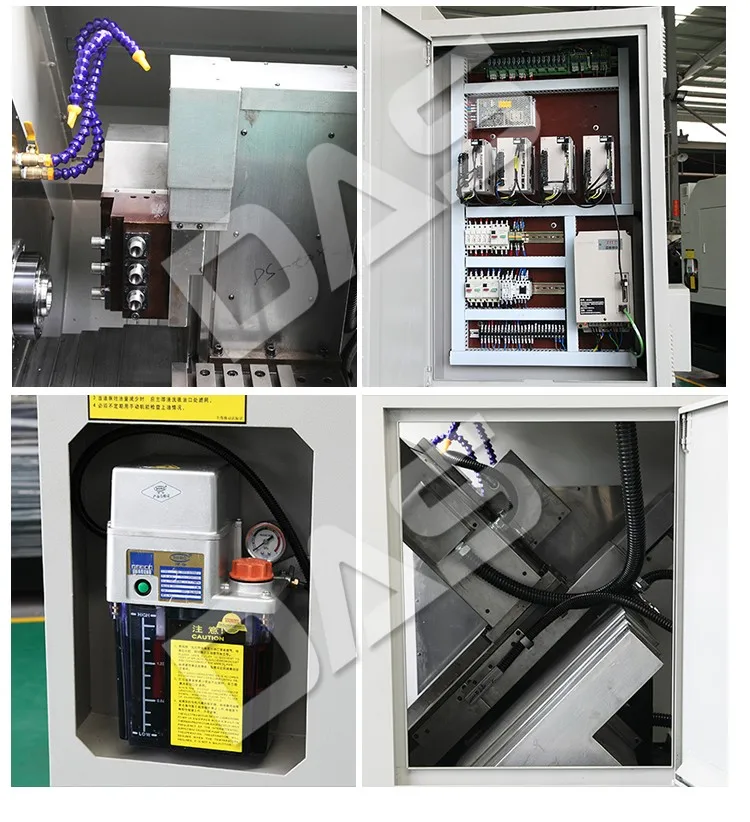

Lubrication system
Electrinic oil pump:centralized automatic forced lubrication. Each ball screw pair and each sliding guide surface are lubricated by quantitative pressure relief centralized by thin oil unit lubrication
