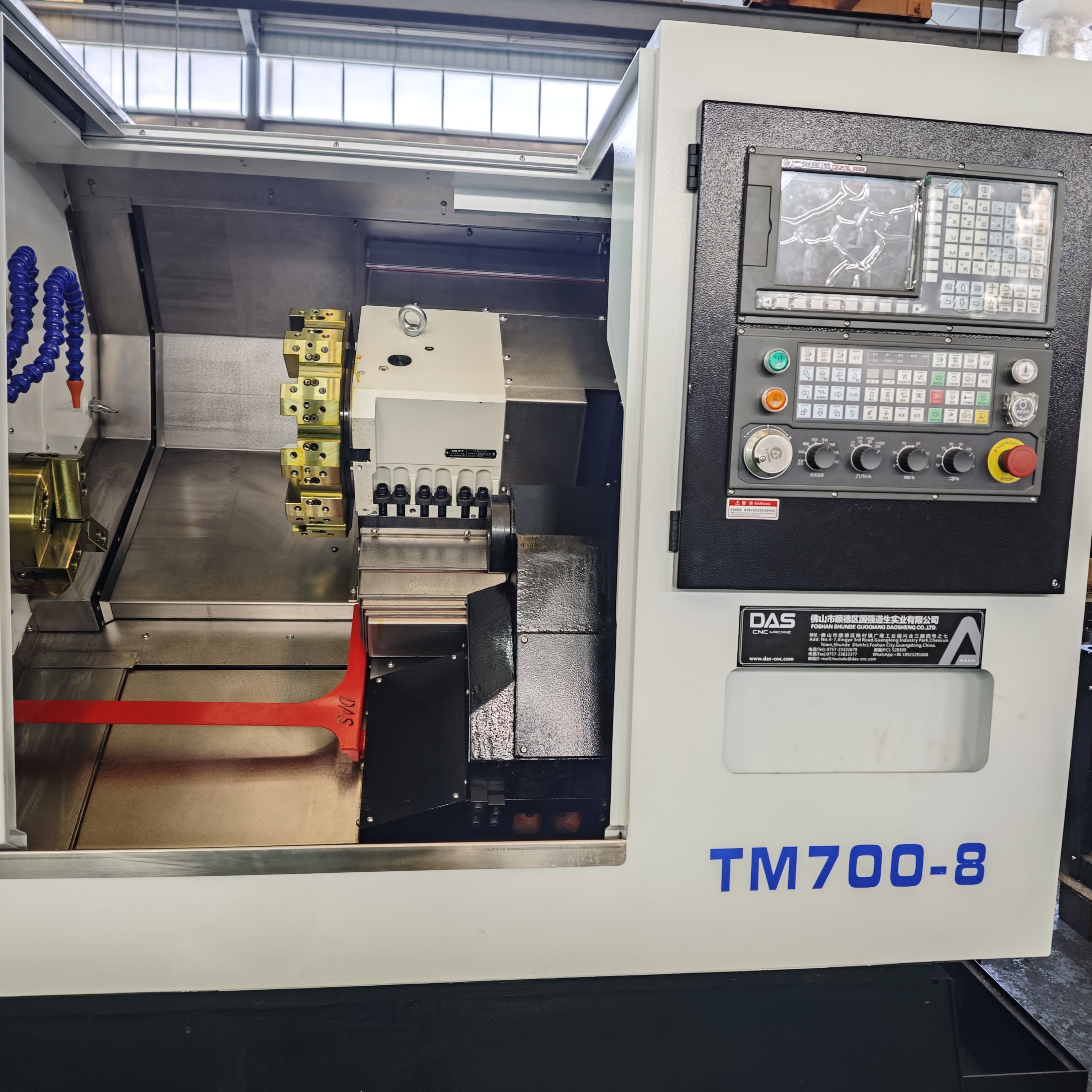

DAS TM700-8 User-Friendly CNC Operating Machine with Touchscreen Interface Lathe and Milling Machine
- Overview
- Recommended Products
Introducing, the DAS’s TM700-8 User-Friendly CNC Operating Machine, a revolutionary lathe and milling machine that is designed to make your machining tasks easier and more efficient. With its touchscreen interface and intuitive controls, this machine is perfect for both beginners and experienced machinists.
The DAS brand is known for its high-quality products and cutting-edge technology, and the TM700-8 is no exception. This machine is built to last, with a sturdy construction and durable components that can withstand the rigors of daily use in a busy workshop.
One of the standout features of the TM700-8 is its touchscreen interface, which allows you to easily input commands and make adjustments with just a few taps of your finger. This intuitive interface makes it simple to program the machine for precise cuts and smooth finishes, saving you time and effort on every project.
In addition to its user-friendly interface, the TM700-8 also boasts a range of advanced features that set it apart from other CNC machines. With high-precision servo motors and a powerful spindle motor, this machine delivers fast and accurate results, even on complex machining tasks.
Whether you are working on a small hobby project or a large-scale production run, the TM700-8 is up to the task. Its versatile design allows you to switch seamlessly between lathe and milling operations, giving you the flexibility to tackle a wide range of machining applications.
But don't just take our word for it - the DAS’s TM700-8 has already earned rave reviews from machinists around the world. Customers praise its reliability, precision, and ease of use, making it a top choice for anyone looking to upgrade their machining capabilities.
So, why settle for a basic CNC machine when you can have the best? Invest in the DAS’s TM700-8 User-Friendly CNC Operating Machine today and take your machining skills to the next level. With its touchscreen interface, advanced features, and durable construction, this machine is sure to become an essential tool in your workshop for years to come

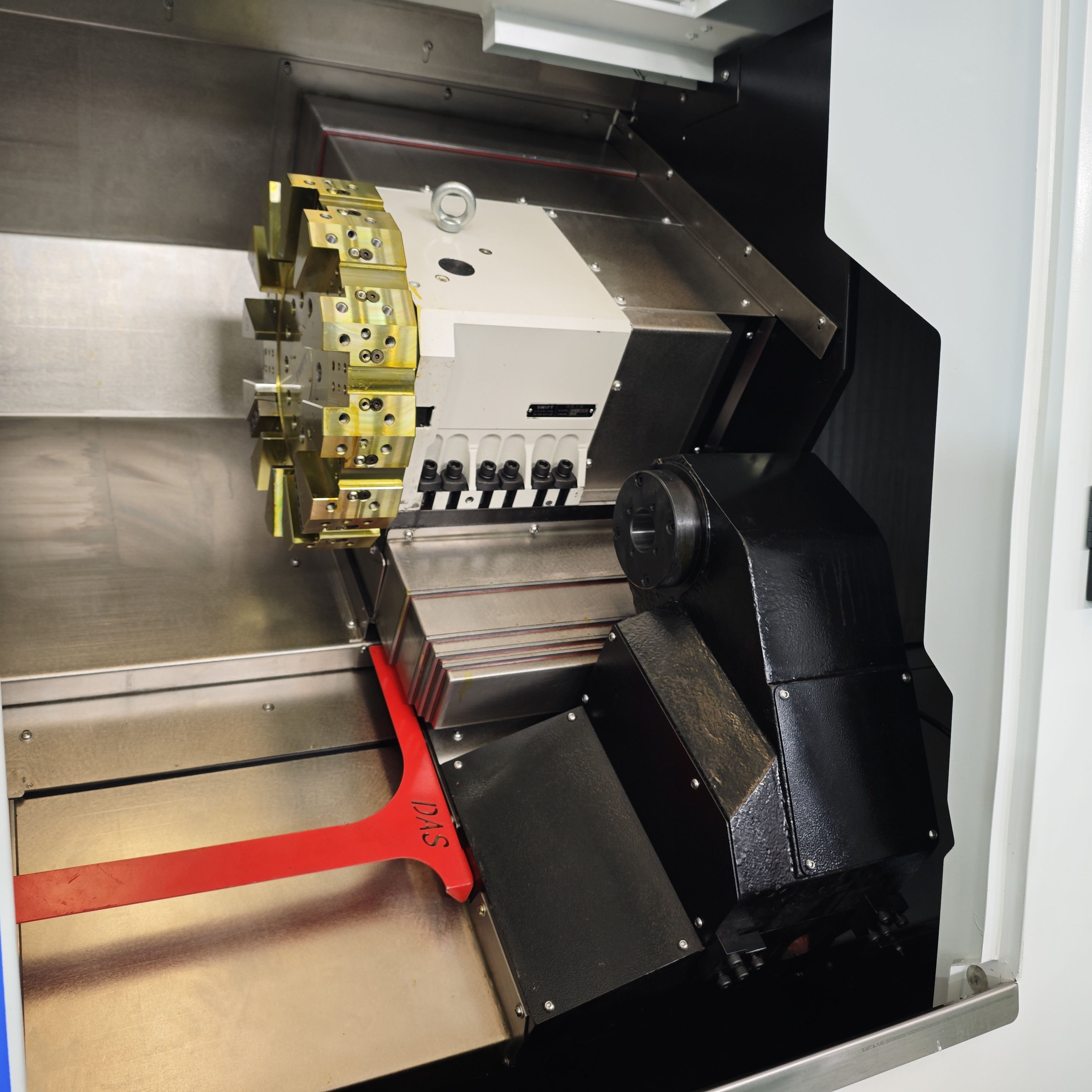

Turret |
/ |
Power turret |
Maximum swing Diameter |
mm |
Φ500 |
Turret Form |
/ |
12 stations servo turret |
Tool size - turning/boring |
mm |
25x25 Φ25/ Φ32 |
Maximum turning Length |
mm |
410 |
Maximum disc machining Diameter |
mm |
Φ350 |
Spindle nose Stop |
mm |
A2-6（8 inch） |
Spindle bore Diameter |
mm |
Φ66 |
Maximum through bar diameter - Tie Bar Through Hole |
mm |
Φ52 |
Spindle speed Range |
r/min |
0-3500 |
X/Z axis travel speed |
M/min |
X:24 / Z:24 |
X-axis travel |
mm |
195 |
Z-axis travel |
mm |
520 |
X / Z Positioning Accuracy |
mm |
0.005 |
X / Z Repeat Positioning Accuracy |
mm |
±0.005 |
Total Machine Power |
19.9kw |
36 |
Machine Weight Approx |
kg |
4250 |
Machine dimensions - LxWxH |
mm |
2700x1700x1750 |
B: Please tell me your specifications, we can choose the best model for you, or you can choose the exact model. You can also send us the products drawing, we will choose the most suitable machines for you
B: Our factory is located in No.4-7 Xingye 3rd Road, Guangdong Industry Park, Chencun Town, Shunde District, Foshan City, Guangdong, China You are warmly welcomed to visit us
B: FOB, CFR and CIF all acceptable
A: What's the MOQ
B: 1 set. Only some low cost machines will be more than 1 set
