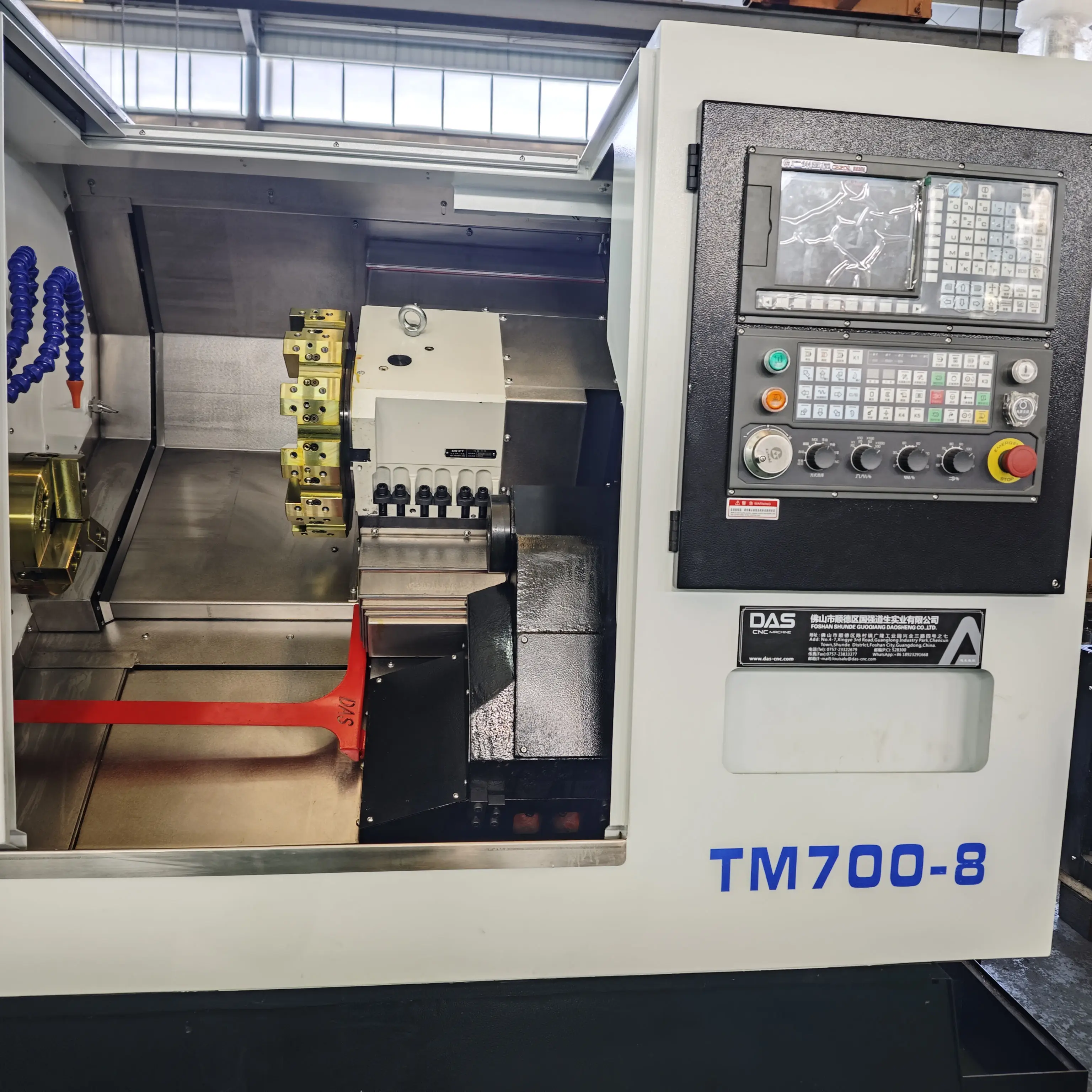

Products Description

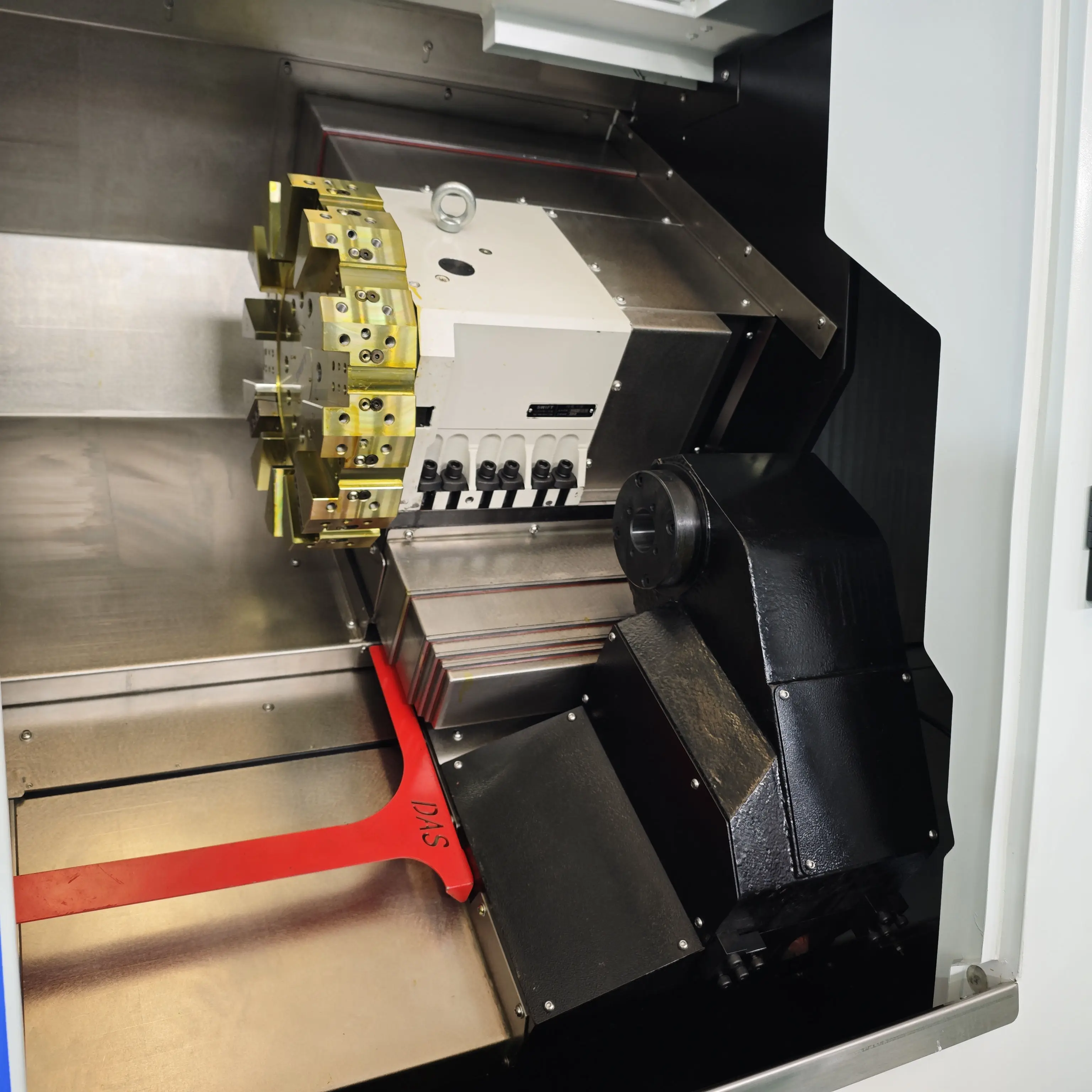

Turret |
/ |
Power turret |
Maximum swing diameter |
m m |
Φ500 |
Turret form |
/ |
12 stations servo turret |
Tool size (turning/boring) |
m m |
25x25 Φ25/ Φ32 |
Maximum turning length |
m m |
410 |
Maximum disc machining diameter |
m m |
Φ350 |
Spindle nose stop |
m m |
A2-6（8 inch） |
Spindle bore diameter |
m m |
Φ66 |
Maximum through bar diameter (tie bar through hole) |
m m |
Φ52 |
Spindle speed range |
r/min |
0-3500 |
X/Z axis travel speed |
M/min |
X:24 / Z:24 |
X-axis travel |
m m |
195 |
Z-axis travel |
m m |
520 |
X / Z positioning accuracy |
mm |
0.005 |
X / Z Repeat Positioning Accuracy |
mm |
±0.005 |
Total machine power |
19.9kw |
36 |
Machine weight approx. |
kg |
4250 |
Machine dimensions (LxWxH) |
mm |
2700x1700x1750 |
Recommend Products

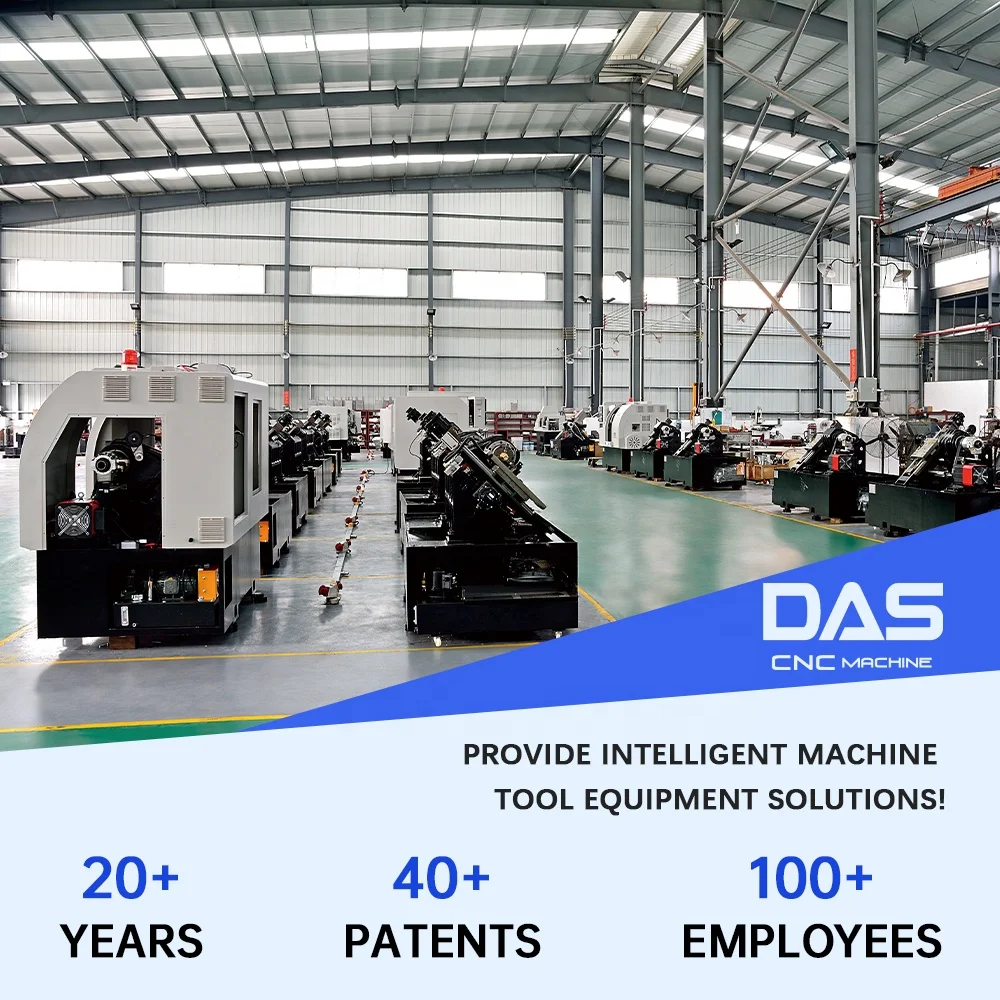

Company Profile
Honor & Certification
Transaction Process
Exhibition & Customer
Configuration Optional
Customer Feedback
A:How can I choose the most suitable machines ?
A: What's the Payment Terms ?
A: What's the MOQ?
B: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
A:What's your main products of your company?
B: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe
A: Where is our factory located? How can I visit there?
B: Our factory is located in No.4-7 Xingye 3rd Road,Guangdong Industry Park,Chencun Town,Shunde District,Foshan City,Guangdong,China You are warmly welcomed to visit us.
A. What is your trade terms?
B: FOB, CFR and CIF all acceptable.
A: What's the Payment Terms ?
B : T/T ,30% initial payment when order ,70% balance payment before shipment
A: What's the MOQ?
B: 1 set .(Only some low cost machines will be more than 1 set )
