Introducing, the DAS’s DS-6L Torno CNC Lathe Machine For Metal Long Travel 1040mm Gang Type Slant Bed Structure - the perfect tool for all your metal turning needs. This versatile machine combines the functions of a lathe, milling machine, and drilling machine all in one convenient package.
With its compact design and powerful motor, the DS-6L Torno CNC Lathe Machine For Metal Long Travel 1040mm Gang Type Slant Bed Structure is perfect for use in the workshop or garage. Whether you're working on a small DIY project or a large professional job, this machine can handle it all with ease.
The CNC technology built into this machine makes it incredibly precise and accurate, ensuring that your finished products are of the highest quality. You can easily create intricate designs and patterns on metal with the precision of a professional craftsman.
The DAS brand is known for its high-quality products, and the DS-6L Torno CNC Lathe Machine is no exception. Made from durable materials, this machine is built to last and will withstand the wear and tear of daily use.
This machine is also incredibly user-friendly, with intuitive controls and an easy-to-follow instruction manual. Whether you're a seasoned professional or a beginner, you'll be able to use this machine with confidence and ease.
Whether you're working on a small hobby project or a large-scale production run, the DAS’s DS-6L Torno CNC Lathe Machine is the perfect tool for the job. With its versatile functions and high-quality construction, this machine will help you achieve professional results every time.
Invest in the DAS’s DS-6L Torno CNC Lathe Machine today and take your metal turning to the next level. Experience the precision and power of CNC technology in your workshop with this reliable and efficient machine
Products Description
The machine is suitable to process all kinds of small and middle-sized shaft and plate work piece, and could also turn various threads, circle arc, circular cone, inside and outside surface of revolved body. This machine is widely used in sanitary, valve, electrical appliance, instrument, automobile, motorcycle, bearings and so on
1. X axis travel:1040 mm.
2. Machine tool bed is casting with resin sand, with the inclination of 45°, easy to operate and remove chips
3. Trans mission part adopts Taiwan HIWIN/PMI P3 levels ball screw, and adopt the Type 35 linear guide rail to enhance rigidity
4. Accessories imported from Japan and Taiwan
5. Taiwan controller system, four-axis; Other brand controller can be chosen
6. Can be equipped with 3x3 or 4x4, side milling, end milling, end and side milling power head, realizing the turn-milling
combined-type processing, simplifying the processing of complicated product, and reducing the trouble caused by secondary processing and improving product precision
combined-type processing, simplifying the processing of complicated product, and reducing the trouble caused by secondary processing and improving product precision
Name |
DS-5L |
DS-6L |
The style of installation tool |
Row knife |
Row knife |
Adjacent tool change time (s) |
0.3 |
0.3 |
Tool change style |
Random |
Random |
Square knife knife holder (mm) |
20X20 |
20X20 |
Round hole knife holder - mm |
φ20 |
φ20 |
With chuck size |
5 Inch |
6 Inch |
Spindle speed (r/min) |
45-4500 |
45-4500 |
Spindle bore - mm |
φ46 |
φ56 |
Center height (mm) |
56 |
56 |
The maximum diameter of rotation (mm) |
380 |
380 |
Spindle motor power (KW) |
5.5 |
7.5 |
Minimum system Resolution |
0.001 |
0.001 |
X/Z Axis stroke (mm) |
1040/250 |
1040/250 |
X/Z axis fast moving speed (m/min) |
30(Factory setting) |
26 - Factory setting |
X servo-motor (KW) |
1.3 |
1.3 |
Z servo-motor (KW) |
1.3 |
1.3 |
Hydraulic station (KW) |
0.75 |
0.75 |
Water tank motor power (KW) |
150W |
150W |
Cooling water tank capacity (L) |
60 |
60 |
Bar feeder center height (mm) |
1140 |
1140 |
Weight (KG) |
2800 |
2850 |
Size (L*W*H mm) |
2250x1500x1950 |
2250x1500x1950 |
Power (KW) |
9 |
11 |

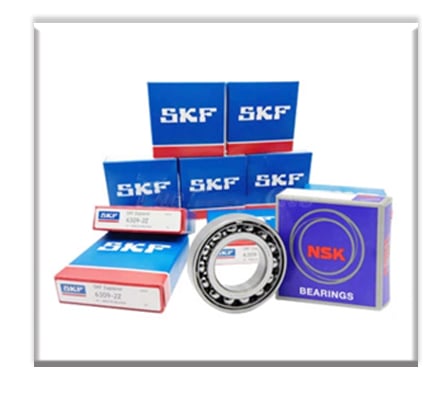

Bearing
The main shaft bearing and lead screw bearing adopt the structure of japan NSK and Sweden SKF, the first three and the second after P4, per stretching technology is adopted to ensure
Vertical four position tool rest
The turrets of Taiwan Liuxin, Xinlong and india Prageti have high positioning accuracy, low working noise and short tool change time
ULTRA PRECISION THREE JAW CHUCK
High rigid cast iron casting, the workpiece is clamped firmly, and the service life is long. The hydraulic chuck can realize the automatic clamping of workpiece through the control panel, greatly saving the time required for manual clamping of workpiece and improving the processing efficiency
Numerical control system
Classic:knd1000t
Reinforcement:siemens/fanuc/mitsubishi/taiwan new generation

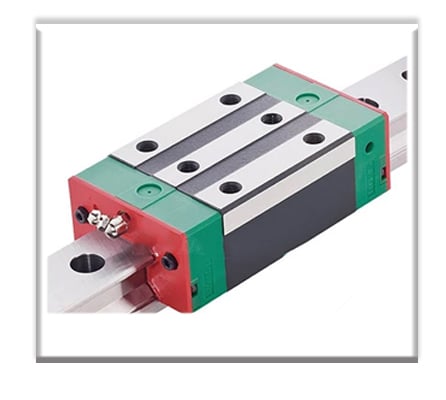

Linear motion guide
Taiwan yintai/hps grade p adopt taiwan track, high rigidity, high precision, long life, strong dustproof

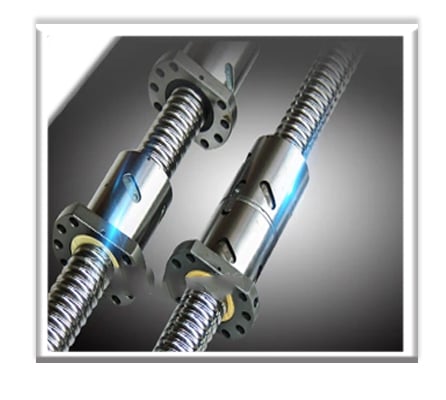

Ball screw
Taiwan yintai/h ps grade C screw rod Taiwan screw, as the core part of machine tool, is provided for general lead and large diameter ball screw better quality of work
Lubrication system
Electrinic oil pump:centralized automatic forced lubrication Each ball screw pair and each sliding guide surface are lubricated by quantitative pressure relief centralized by thin oil unit lubrication
