Introducing, the DAS’s High Precision Automatic Slant Bed CNC Lathe Machine, equipped with a cutting-edge Fanuc/GSK/Siemens Control System. This advanced machine is designed for high precision and efficiency in machining various materials with ease. Whether you are a professional machinist or a hobbyist, this CNC lathe machine is perfect for any workshop or manufacturing environment.
The DAS’s CNC lathe machine features a sturdy and durable construction, ensuring stability and accuracy during operation. The automatic slant bed design allows for easy loading and unloading of workpieces, making it convenient and time-saving for users. The machine is also equipped with a high-quality Fanuc/GSK/Siemens Control System, providing precise and reliable control over all machining operations.
With a compact and ergonomic design, the DAS’s CNC lathe machine saves space in your workshop while delivering exceptional performance. The machine is equipped with a powerful spindle motor, allowing for high-speed and high-precision machining. Whether you are working on small or large projects, this CNC lathe machine guarantees superior results every time.
The DAS’s CNC lathe machine is suitable for a wide range of applications, including turning, facing, drilling, and threading. Thanks to its advanced control system, users can easily program and control various machining processes with precision and efficiency. The machine also features a user-friendly interface, making it easy for operators to set up and operate the machine with minimal training.
Safety is a top priority with the DAS’s CNC lathe machine, as it comes equipped with multiple safety features to protect users during operation. The machine is also designed for easy maintenance, ensuring long-term reliability and performance. With its high precision and automation capabilities, the DAS’s CNC lathe machine is a valuable asset for any workshop or manufacturing facility.
The DAS’s High Precision Automatic Slant Bed CNC Lathe Machine with Fanuc/GSK/Siemens Control System is a top-of-the-line machine that delivers unmatched performance and precision. Whether you are a seasoned professional or a beginner, this CNC lathe machine is a must-have for any machining operation. Invest in the DAS’s CNC lathe machine today and take your machining capabilities to the next level
End milling Turning Center - Slanting bed, Milling Motor
- X axis to 1040 mm;
- The base is cast by using the resin-bonded sand, with the inclination of 45°, easy to operate and remove chips;

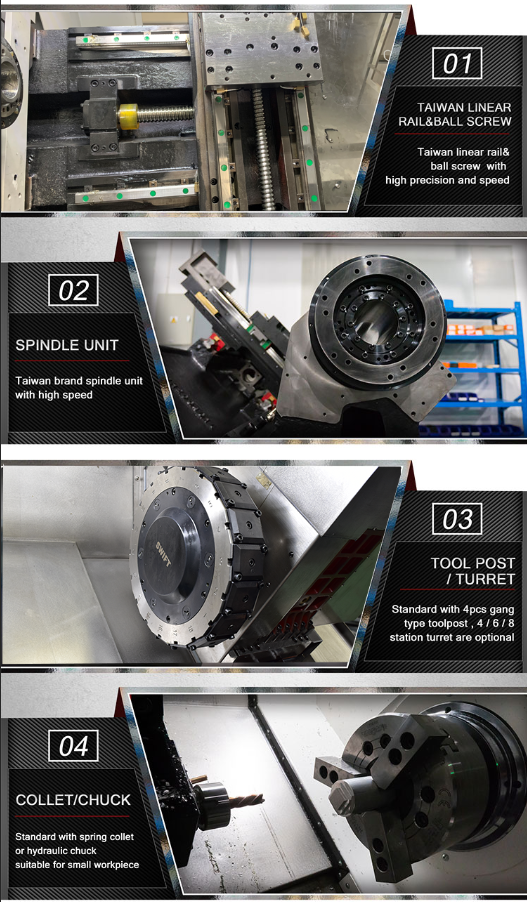

- Transmission part adopts Taiwan HIWIN/PMI P3 levels ball screw, and adopt the Type 35 linear guide rail to enhance rigidity;
- High-precision main spindle of Taiwan; the spindle flange can be directly installed with Φ160 3-jaw self-centering oil-pressure chuck or other collets;
- Servo motor for spindle motor, more optimized performance;
- Accessories imported from Japan and Taiwan;
- Taiwan controller system, four-axis ; Or other controler option;
- You can with 3x3 or 4x4 integrated power head, axis Y and C functions, realizing the turn-milling combined-type processing, simplifying the processing of complicated product, and reducing the trouble caused by secondary processing and improving product accuracy;
- Computer-aided automatic lubricating system to lubricate linear guide rail and ball screw, guaranteeing the service life of guide rail and ball screw;
- Full guard, beautiful and easy

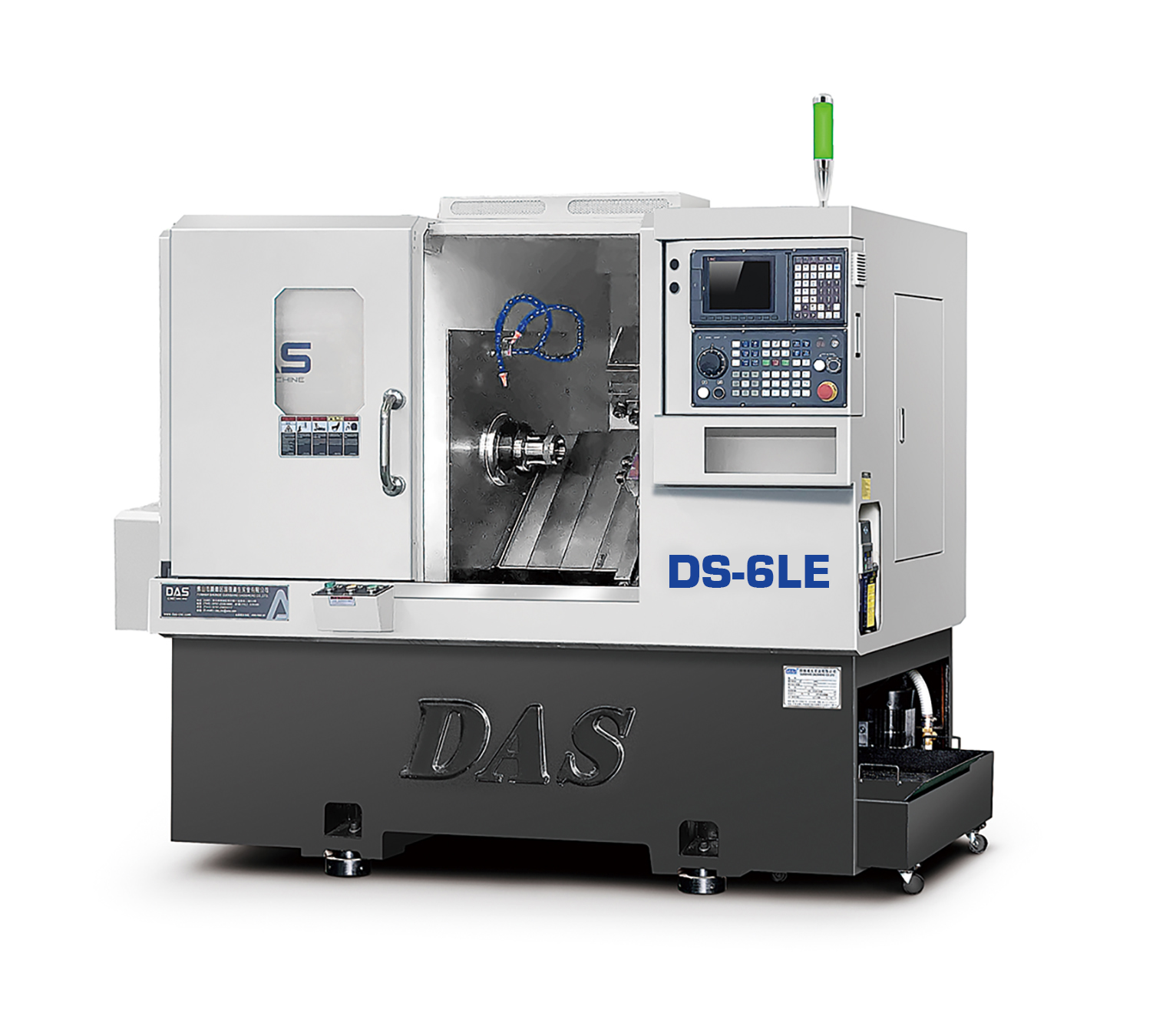

| Name | DS-5LE | DS-6LE |
| Adjacent tool change time (s) | 0.3 | 0.3 |
| Tool change style | Random | Random |
| Square knife knife holder (mm) | 20X20 | 20X20 |
| Round hole knife holder - mm | φ20 | φ20 |
| With chuck size | 5 Inch | 6 Inch |
| Spindle speed (r/min) | 0-4500 | 0-4500 |
| Spindle bore - mm | φ46 | φ56 |
| Center height (mm) | 56 | 56 |
| The maximum diameter of rotation (mm) | 380 | 380 |
| Spindle motor power (KW) | 5.5 | 7.5 |
| Minimum system Resolution | 0.001 | 0.001 |
| X/Z Axis stroke (mm) | 1030/300 | 1030/300 |
| X/Z axis fast moving speed (m/min) | 30 | 30 |
| X/Z axis Repetitive positioning accuracy (mm) | ±0.005 | ±0.005 |
| Taper (mm) | ≤0.003/100 | ≤0.003/100 |
| Card position size (mm) | ≤0.003 | ≤0.003 |
| X servo-motor (KW) | 1.3 | 1.3 |
| Z servo-motor (KW) | 1.3 | 1.3 |
| Hydraulic station (KW) | 0.75 | 0.75 |
| Water tank motor power (KW) | 150W | 150W |
| Cooling water tank capacity (L) | 60 | 60 |
| Bar feeder center height (mm) | 1120 | 1120 |
| Weight (KG) | 2800 | 2850 |
| Size (L*W*H mm) | 2250x1500x1950 | 2250x1500x1950 |
| Power (KW) | 10 | 12 |
Foshan Shunde Guoqiang Daosheng Industrial Co., Ltd. is located in Chencun, the important machinery town in Shunde District, Foshan. Sticking to the human-centering management, we are in possession of a group of highly competent technical personnel, a market oriented experienced sales team. In the gesture of sincere cooperation, we strive to establish a promise keeping and quality
Our major products include CNC series gang tool type lathes, turret lathes, take heart-type lathes and milling-type lathes, featuring space saving, low cost and diversified arrangement etc. They can also meet the demand for precise processing of different products. The products find widespread application in the manufacture of cars, motorcycles and accessories thereof, electronic industry, optical instruments, clocks and watches as well as special motors etc
We have precise lathe equipment, complete quality guarantee system, prompt goods supply as well as perfect after-sales service, which ensure us the first consideration when you purchase high-precision machine tools
| 1. Dear: How do I pay for my purchase order |
| Trasa: T/T, Western Union, Escrow, Paypal, Alipay |
| 2. Dear: How can I visit your company |
| Trasa: A: You can take underground to South of Station Guangzhou, then we will pick you up to our company. Just one hour from Baiyun airport to our company. Warmly welcome you to visit our company |
| 3. Dear: What is the MOQ |
| Trasa: One set |
| 4. Dear: What is the delivery time |
| Trasa: 30-45days |
| 5. Dear: Can I have my own order customized products |
| Trasa: Yes, your customized requirements for color, logo, design, package, carton mark, etc. are very welcome |
| 6. Dear: Do you have quality control |
| Trasa: Yes, we attach great important to quality problem occurs |
| 7. Dear: How about the warranty |
| Trasa: Since the Bill of Lading date, out company implements the products after-sale service. The warranty period is 12 months. During the warranty period, our company provides free replacement parts if these parts or damages are out of machine itself quality problems. Meantime, the machine should be under normal operation according to the Operational Maunal provided by the buyers. Except for im-proper operation or man-made damage by the buyers |
