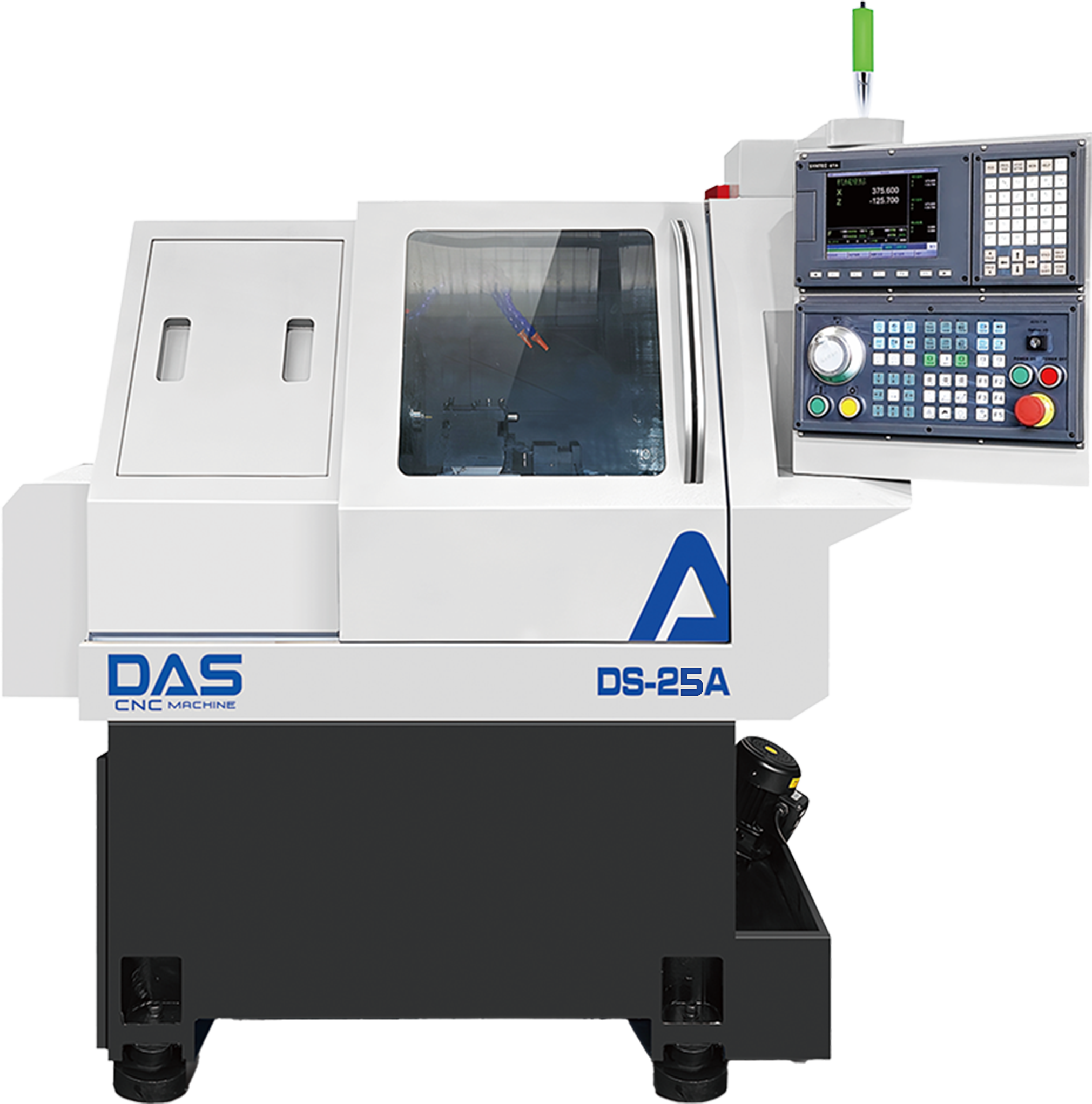

Introducing, the DAS’s Heavy Duty GSK/LNC/Siemens/Syntec/Fanuc China Horizontal Mini CNC Lathe Machine! This cutting-edge piece of machinery is perfect for all your lathe needs. Whether you're a professional machinist or a hobbyist looking to expand your workshop, this CNC lathe machine is sure to impress.
This mini CNC lathe machine is manufactured by DAS, a trusted brand known for its high-quality tools and machinery. With the latest technology from GSK, LNC, Siemens, Syntec, and Fanuc, you can trust that this machine is built to last and perform at the highest level.
The heavy-duty construction of this CNC lathe machine ensures stability and precision during operation. The horizontal design allows for easy loading and unloading of materials, making it simple to switch between different projects. With a compact size, this machine is perfect for smaller workshops or garages where space is limited.
Equipped with advanced features, this CNC lathe machine offers a wide range of capabilities. The precision machining capabilities allow for intricate detailing and accurate cuts, while the powerful motor ensures smooth and efficient performance. The user-friendly interface makes it easy to program and control, even for those new to CNC machining.
Whether you're working on metal, wood, or plastic, this CNC lathe machine can handle a wide range of materials with ease. From turning and milling to drilling and threading, there's no limit to what you can create with this versatile machine.
With the DAS’s Heavy Duty GSK/LNC/Siemens/Syntec/Fanuc China Horizontal Mini CNC Lathe Machine, you can take your machining projects to the next level. Invest in this top-of-the-line machine today and experience the precision, power, and versatility that only DAS can provide. Upgrade your workshop with the best CNC lathe machine on the market and see the difference for yourself
Products Description
The machine is suitable to process all kinds of small and middle-sized shaft and plate work piece, and could also turn various threads, circle arc, circular cone, inside and outside surface of revolved body. This machine is widely used in sanitary, valve, electrical appliance, instrument, automobile, motorcycle, bearings and so on
Name |
DS-25A |

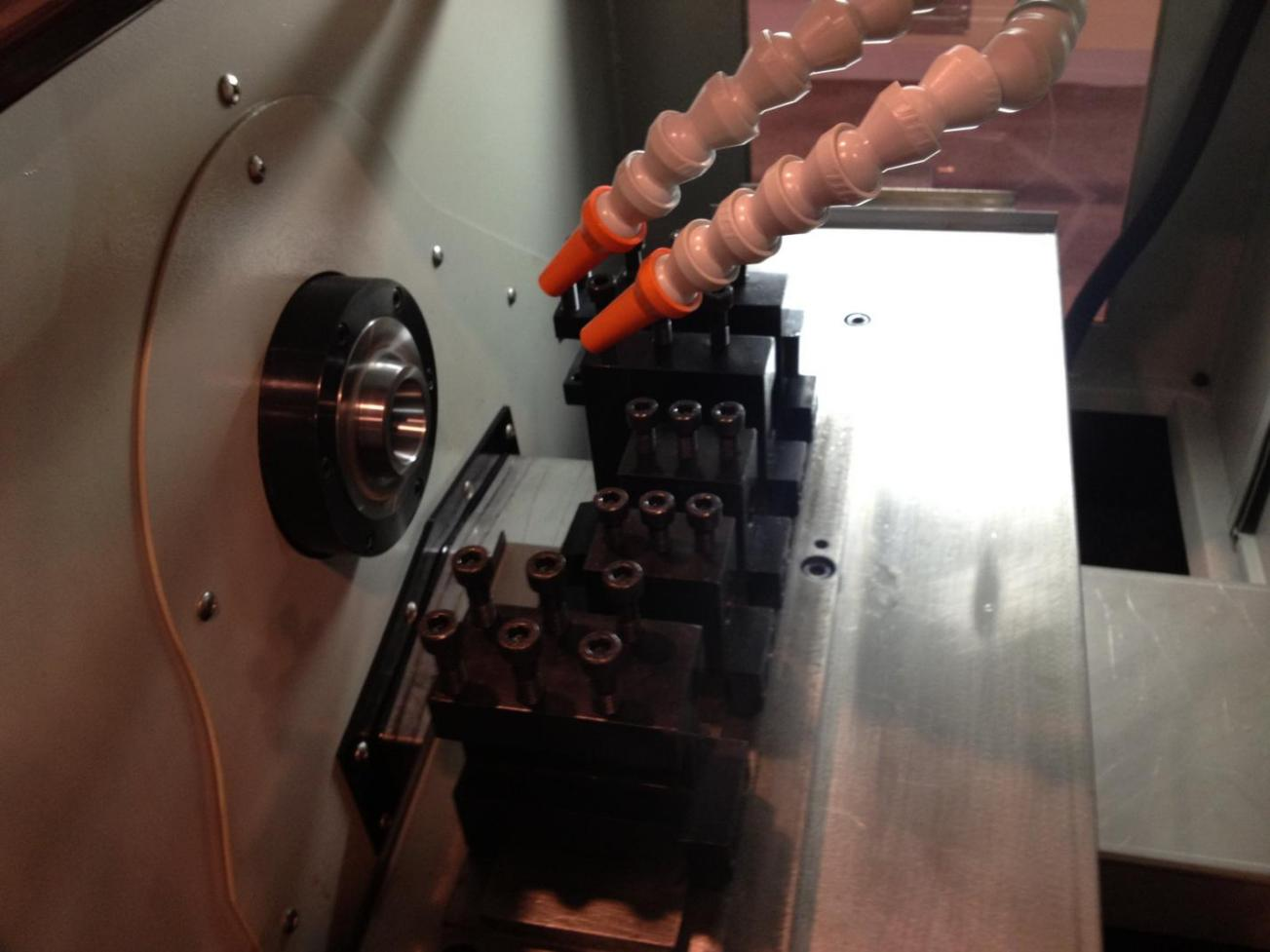

Tool installation |
Gang type, Horizontal |
Tool change method |
Random |
Square tool holder(mm) |
16×16 |
Round hole knife (mm) |
∮20 |
Max. Configurable tools (pcs) |
8 |
Spindle speed（r/min） |
1-6000 |
Spindle model |
CK150D-25/3.0 |
Spindle center height (mm) |
51 |
Spindle bore(mm) |
∮28 |
Max. Through bar diameter (mm) |
∮25 |
Max. Working length (mm) |
200 |
Max. Working diameter (mm) |
∮100 |
Max. Swing diameter (mm) |
∮360 |
Spindle motor power (kw) |
3.0 - Afa |
System minimum resolution (mm) |
0.001 |
X/Z axis repeated positioning accuracy (mm) |
±0.007 |
X/Z axis travel（mm） |
500/230 |
Taper (mm) |
≤0.003/100mm |
Roundness (mm) |
≤0.003 |
X/Z axis rapid traverse speed（m/min) |
23/23 |
X servo-motor(kw) |
1.1 - Syntec |
Z servo-motor (kw) |
1.1 - Syntec |
Air pressure |
0.4~0.8MPa |
Coolant tank motor(kw) |
350 |
Power（kw） |
5.3 |
Weight（KG） |
1420 |
Size（L*W*H)（mm） |
1730x1230x1540 |

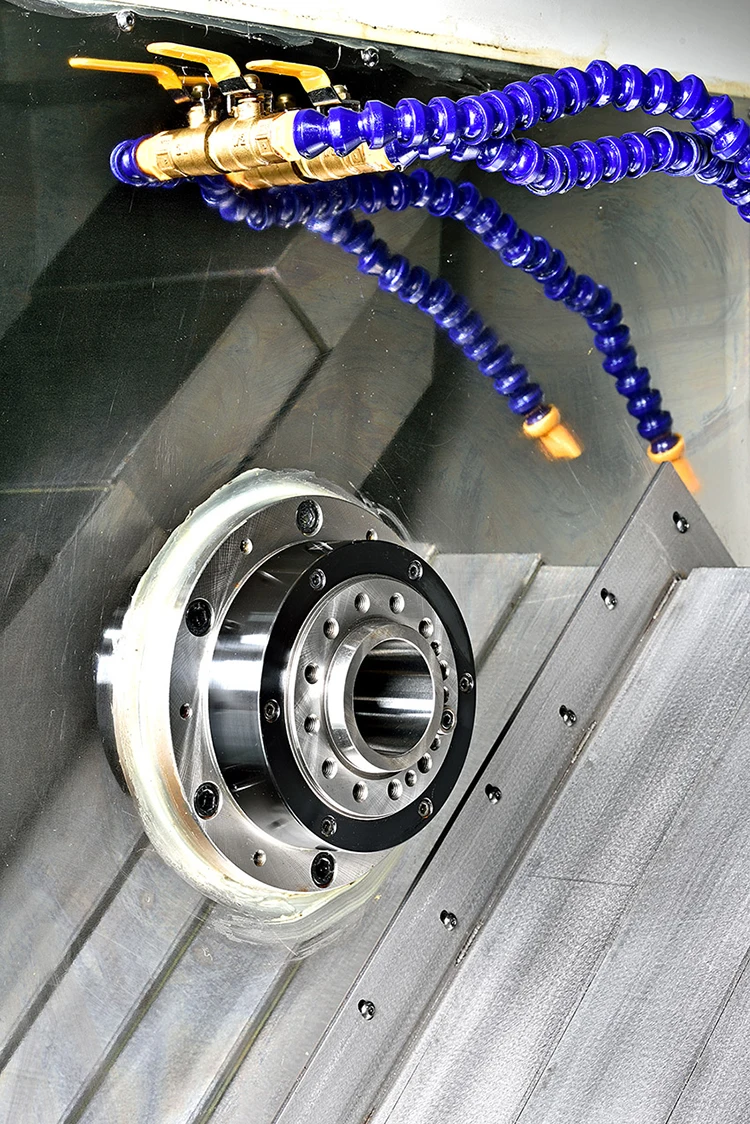

Bearing
The main shaft bearing and lead screw bearing adopt the structure of japan NSK and Sweden SKF, the first three and the second after P4, per stretching technology is adopted to ensure

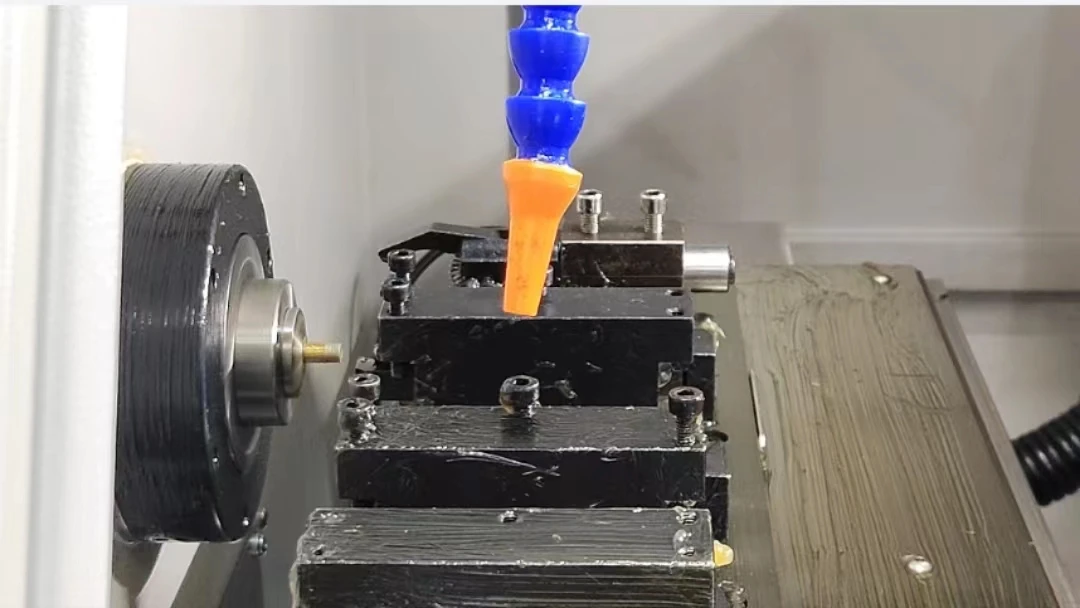

Vertical four position tool rest
The turrets of Taiwan Liuxin, Xinlong and india Prageti have high positioning accuracy, low working noise and short tool change time
ULTRA PRECISION THREE JAW CHUCK
High rigid cast iron casting, the workpiece is clamped firmly, and the service life is long. The hydraulic chuck can realize the automatic clamping of workpiece through the control panel, greatly saving the time required for manual clamping of workpiece and improving the processing efficiency
Numerical control system
Classic:knd1000t
Reinforcement:siemens/fanuc/mitsubishi/taiwan new generation
Linear motion guide
Taiwan yintai/hps grade p adopt taiwan track, high rigidity, high precision, long life, strong dustproof
Ball screw
Taiwan yintai/h ps grade C screw rod Taiwan screw, as the core part of machine tool, is provided for general lead and large diameter ball screw better quality of work
Lubrication system
Electrinic oil pump:centralized automatic forced lubrication. Each ball screw pair and each sliding guide surface are lubricated by quantitative pressure relief centralized by quantitative thin oil unit lubrication
