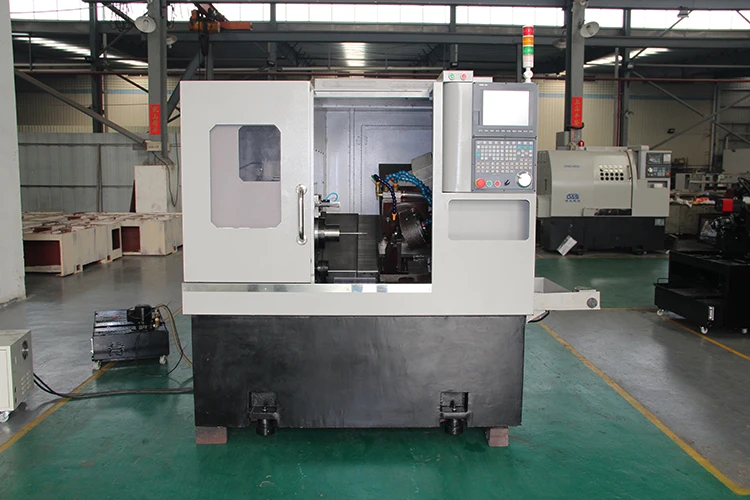

Introducing, the high-quality Whirling Milling Micro Motor Worm Gear and Shaft CNC Lathe Machine from DAS! This innovative machine is designed to bring precision and efficiency to your machining projects. Whether you are a hobbyist or a professional, this CNC lathe machine is perfect for creating intricate designs with ease.
The Whirling Milling Micro Motor Worm Gear and Shaft CNC Lathe Machine is equipped with a powerful micro motor that allows for precise control over the speed and rotation of the milling process. This means that you can create intricate designs and shapes with ease, giving your work a professional finish every time.
One of the standout features of this CNC lathe machine is the worm gear and shaft system. This system allows for smooth and precise movement of the cutting tool, ensuring that your designs come out exactly as you intended. The worm gear and shaft system also helps to reduce vibration and noise, creating a more comfortable working environment.
The DAS’s CNC lathe machine is also incredibly versatile, allowing you to work with a wide range of materials. Whether you are working with wood, plastic, or metal, this machine can handle it all with ease. This versatility makes it the perfect tool for a wide range of projects, from creating intricate jewelry designs to machining precision parts for industrial applications.
In addition to its superior performance, the Whirling Milling Micro Motor Worm Gear and Shaft CNC Lathe Machine is also built to last. Made from high-quality materials, this machine is durable and reliable, ensuring that it will be a staple in your workshop for years to come. Its compact design also makes it easy to store when not in use, saving valuable space in your workspace.
The DAS’s CNC lathe machine is a top-of-the-line tool for anyone looking to take their machining projects to the next level. With its precision control, versatile capabilities, and durable construction, this machine is sure to become an essential part of your workshop. Upgrade your machining capabilities today with the Whirling Milling Micro Motor Worm Gear and Shaft CNC Lathe Machine from DAS

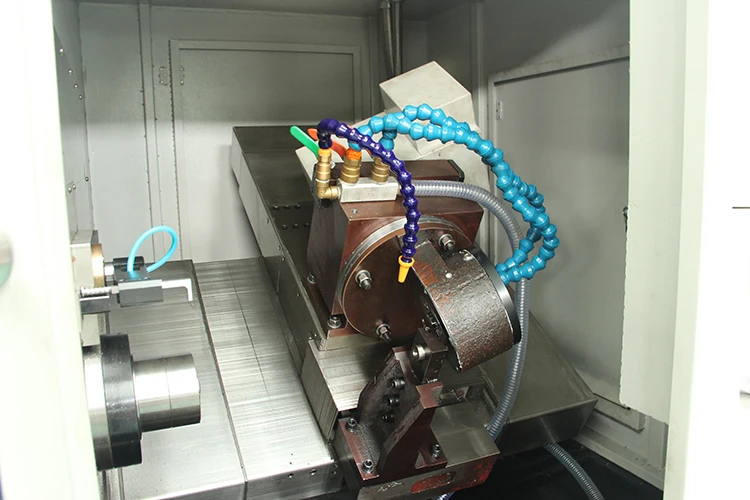

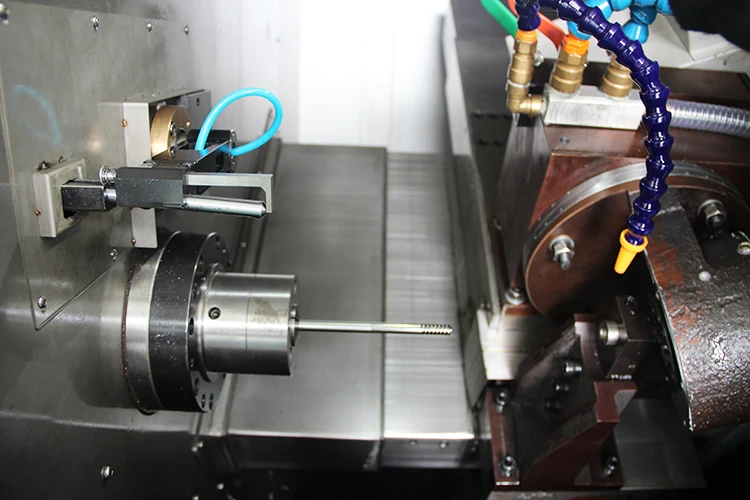

Whirlwind milling cnc lathe features
- Machine tool base is resin sand cast integrally, boasts high vibration resistance, small machine deformation
- Yaskawa servo drive is used for main shaft to ensure the high precision requirement of multiple thread screw
- The main shaft contains high precision Japan NSK precise bearing with the inner cone of main shaft directly mounted with elastic chuck in order to ensure the rotation precision
- Taiwan famous HIWIN / PMI high-precision Class P3 ball-bearing screw rod is used for the transmission portion of the machine tool

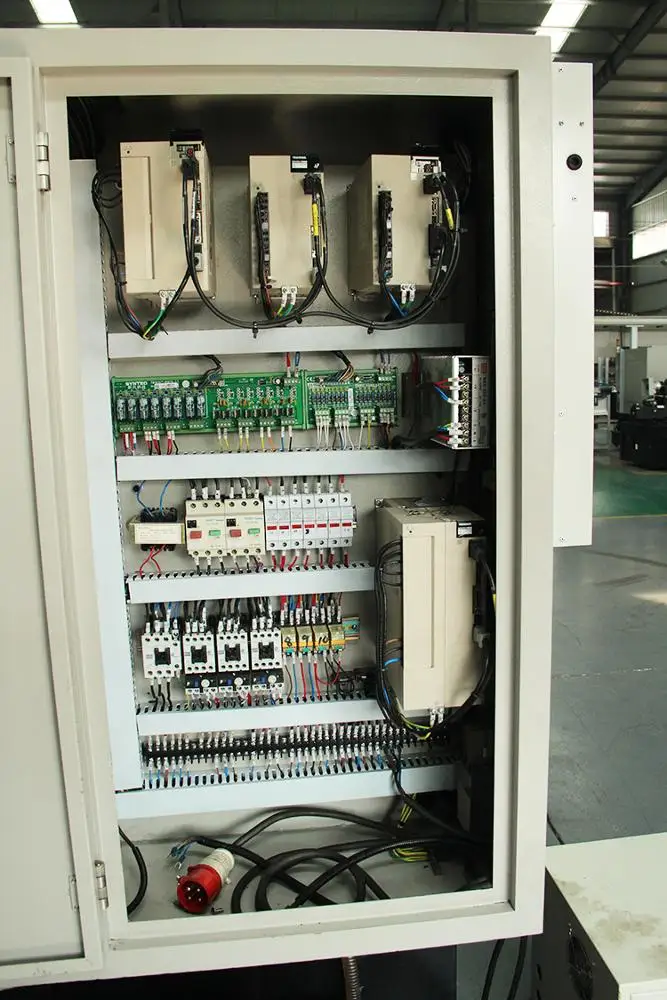

- The machine USES Taiwan SYNTEC system, Japan YASKAWA servo motor control
- Machine adopts roller guide rail structure, can withstand the larger cutting and resistance to impact

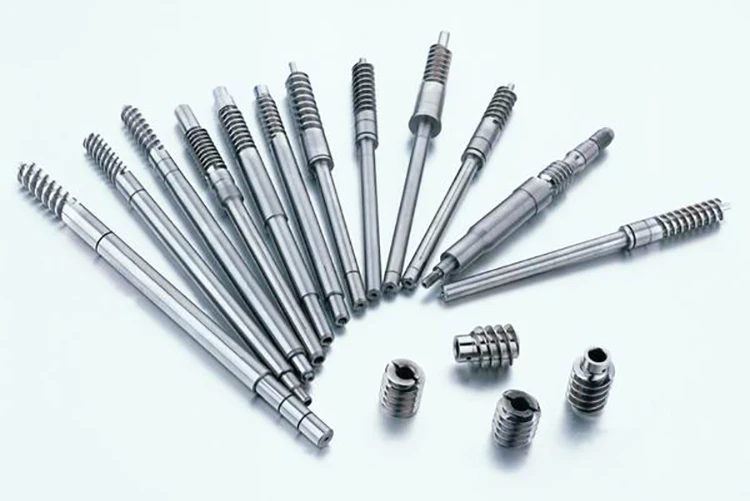

- The machine can be used for processing single head or multi-head worm
- Knife shaft can realize large Angle rotation
| Name - Parameter | DS-25W |
| Maximum processing length (mm) | 250 |
| Maximum processing modulus (M) | 1.5 |
| Maximum processing diameter (mm) | 20 |
| Tailstock function | No |
| With the knife guide sleeve | Have |
| Tool change style | Random |
| Spindle maximum speed (r/min) | 1500 |
| Spindle motor power (KW) | 4.4 |
| Maximum speed of the knife shaft (r/min) | 6000 |
| Knife shaft motor power (KW) | 1.8 |
| Tool form | Forming tool |
| Maximum installed quantity | 1 |
| Minimum system Resolution | 0.001 |
| X/Z Axis stroke (mm) | 100/250 |
| X/Z axis fast moving speed (m/min) | 12 |
| X/Z axis Repetitive positioning accuracy (mm) | ±0.003 |
| Taper (mm) | ≤0.005/100 |
| Card position size (mm) | ≤0.003 |
| X servo-motor (KW) | 1.3 |
| Z servo-motor (KW) | 1.3 |
| Hydraulic station (KW) | 0.75 |
| Water tank motor power (KW) | 0.12 |
| Cooling water tank capacity (L) | 100 |
| Power (kw) | 10 |
| Weight (KG) | 2300 |
| Size ( L*W*H mm) | 2100*1550*1800 |
Foshan Shunde Guoqiang Daosheng Industrial Co., Ltd. is located in Chencun, the important machinery town in Shunde District, Foshan. Sticking to the human-centering management, we are in possession of a group of highly competent technical personnel, a market oriented experienced sales team. In the gesture of sincere cooperation, we strive to establish a promise keeping and quality
Our major products include CNC series gang tool type lathes, turret lathes, take heart-type lathes and milling-type lathes, featuring space saving, low cost and diversified arrangement etc. They can also meet the demand for precise processing of different products. The products find widespread application in the manufacture of cars, motorcycles and accessories thereof, electronic industry, optical instruments, clocks and watches as well as special motors etc
We have precise lathe equipment, complete quality guarantee system, prompt goods supply as well as perfect after-sales service, which ensure us the first consideration when you purchase high-precision machine tools
1. MOQ
A: 1set
2. DeliveryTime
A: The delivery time will be confirmed by different machines with different configurations. Some models are in store, some models need about 2 months or more
3. Warranty Period
A: Since the Bill of Lading date, out company implements the products after-sale service. The warranty period is 12 months. During the warranty period, our company provides free replacement parts if these parts or damages are out of machine itself quality problems. Meantime, the machine should be under normal operation according to the Operational Maunal provided by the buyers. Except for im-proper operation or man-made damage by the buyers
4. Payment Tems
A: We prefer to do 100% T/T
